INVENTRONICS / MEANWELL
Driver and Lumileds SMD3030 Chips
with 150Lm/W System efficiency.
BEAM ANGLE
Type I, II, III, IV, V beam angles meet
different lighting distribution requirements.
DIE CASTING HOUSING
Hot air convection design, for better heat dispassion.
IP66
Elegant appearance design and 5mm thickness glass cover.
5 YEARS
High quality chips and driver provide over
50000 hours long life span with 5 years warranty.
GLOBAL CERTIFICATED
Full Certificated with TUV, CB,CE,SAA,C-Tick, IP, IK,
ERP,LM79 etc Certificated for different country.
Technical Parameter
System Efficiency150LM/W
Beam AngleType I, II, III IV, V
CCT3000~6500K
CRI>80
Voltage InputAC220~240V
|
20W BKK VI-5020W 491*190*82(mm) |
30W BKK VI-5030W 491*190*82(mm) |
40W BKK VI-5040W 491*190*82(mm) |
50W BKK VI-5050W 491*190*82(mm) |
60W BKK VI-5060W 491*190*82(mm) |
|
80W BKK VI-5080W 491*190*82(mm) |
100W BKK VI-5100W 547*240*82(mm) |
120W BKK VI-5120W 547*240*82(mm) |
150W BKK VI-5150W 550*280*109(mm) |
180W BKK VI-5180W 550*280*109(mm) |
|
200W BKK VI-5200W 550*280*109(mm) |
|
|
|
|

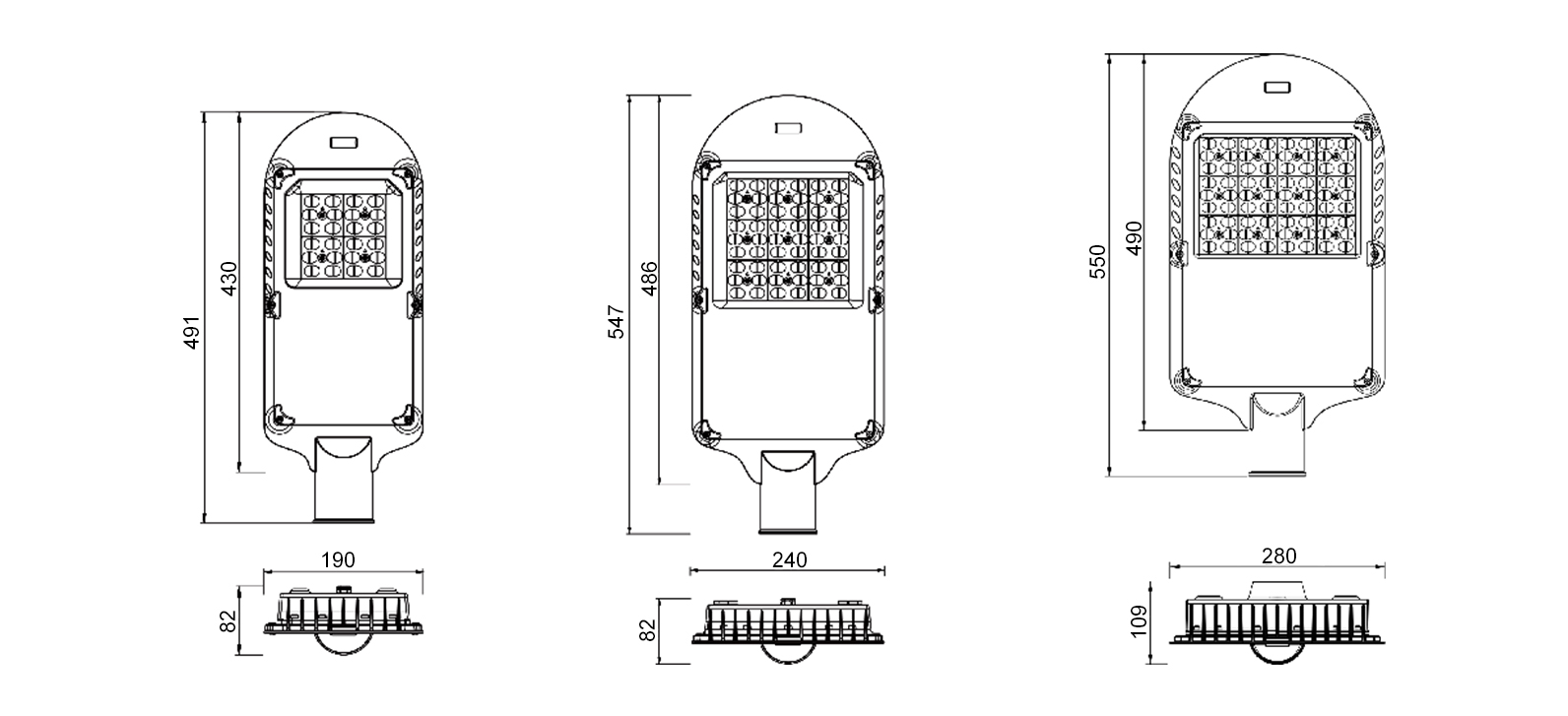

Product Size
