Tempered glass panel

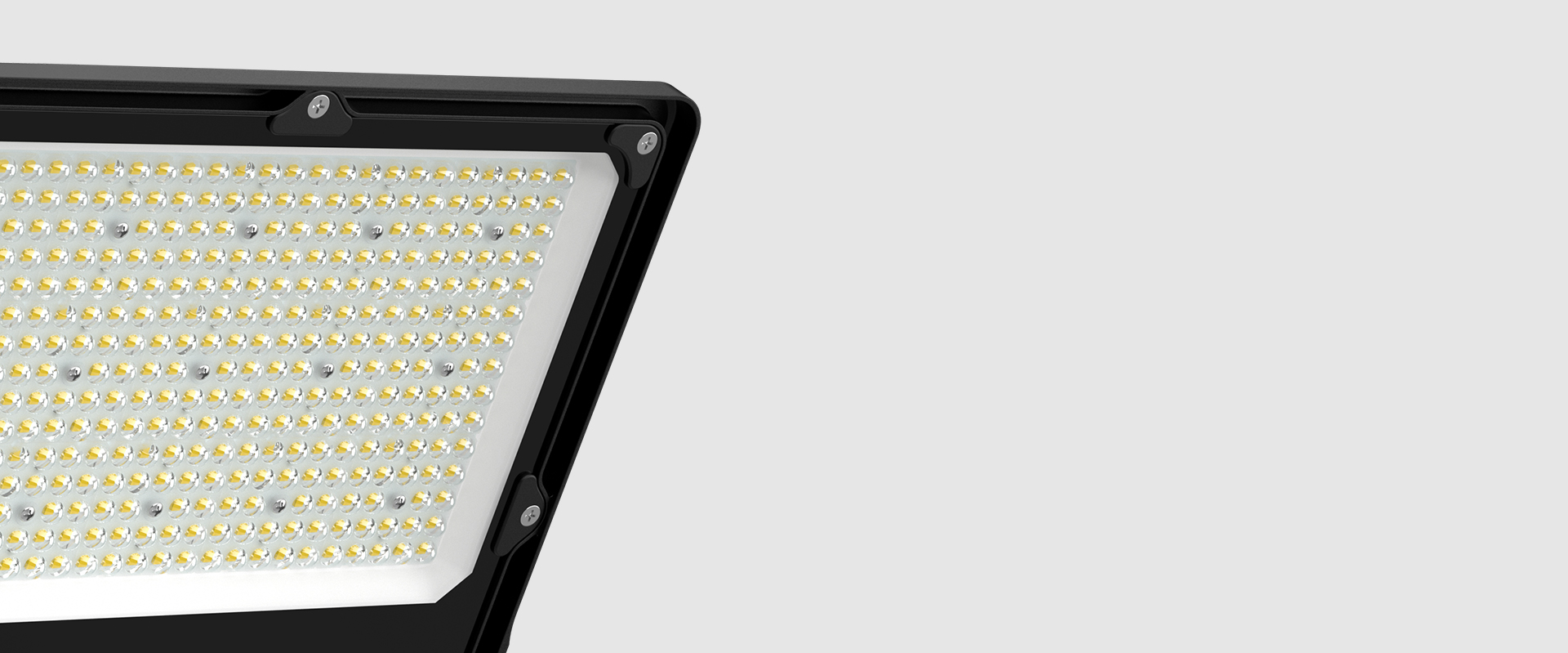

Professional optical PC lens,non-yellowing material
Die-Casting housing

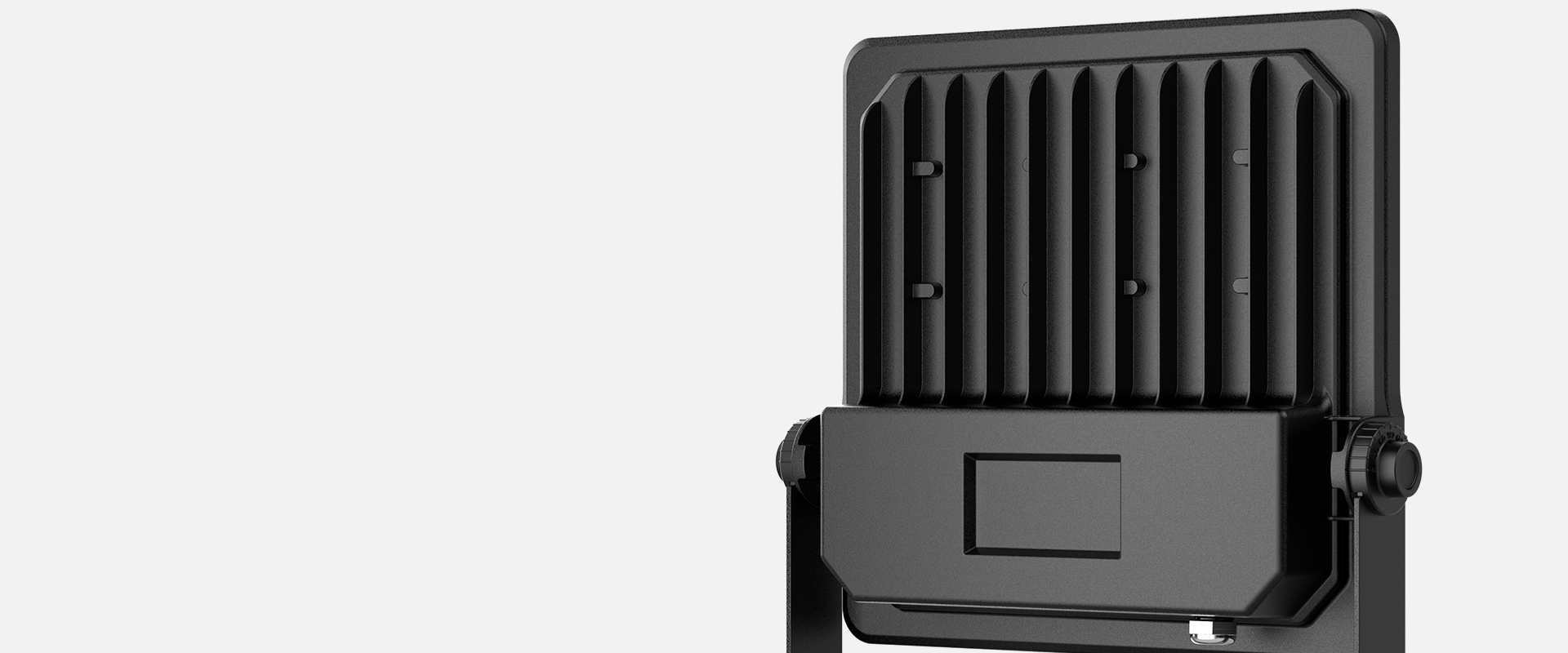

Hot air convection design, for better
heat dispassion.
SOSEN, Inventronics, Meanwell

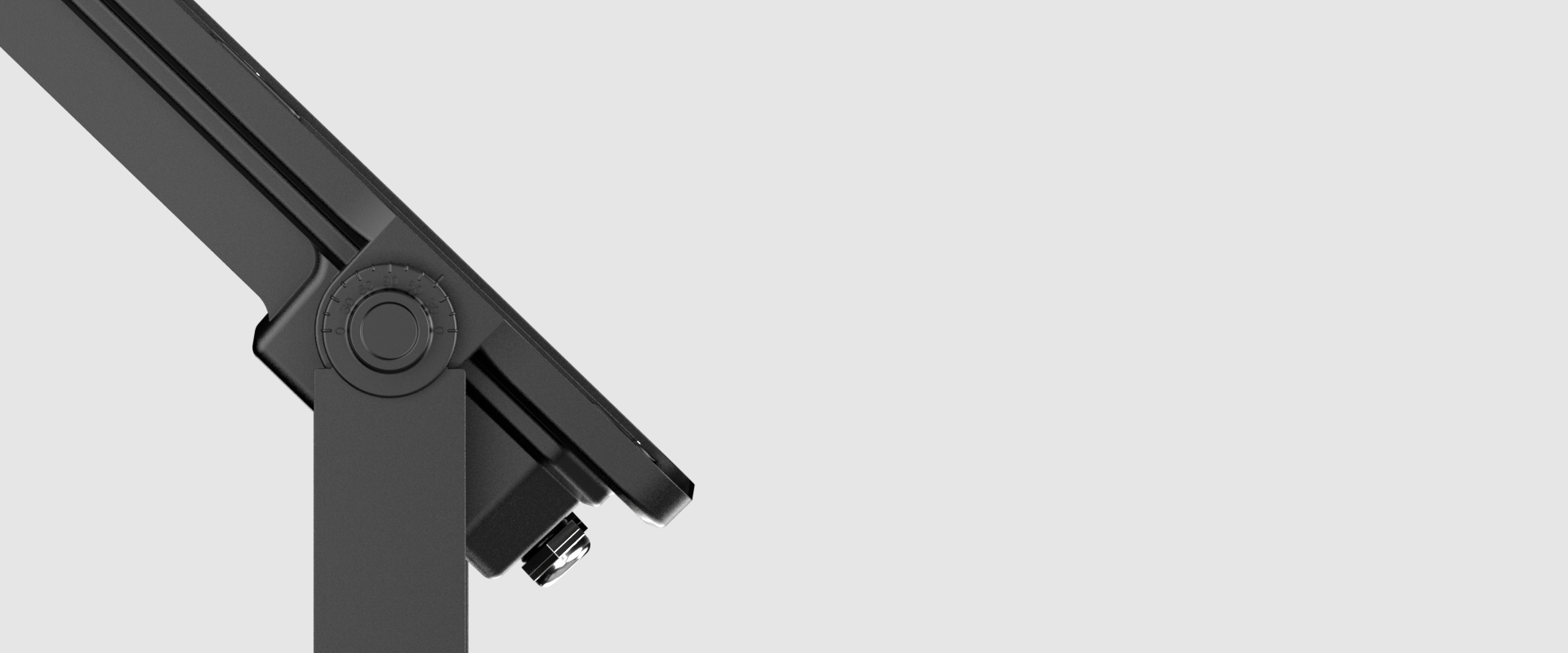

Precisely adjustable angle

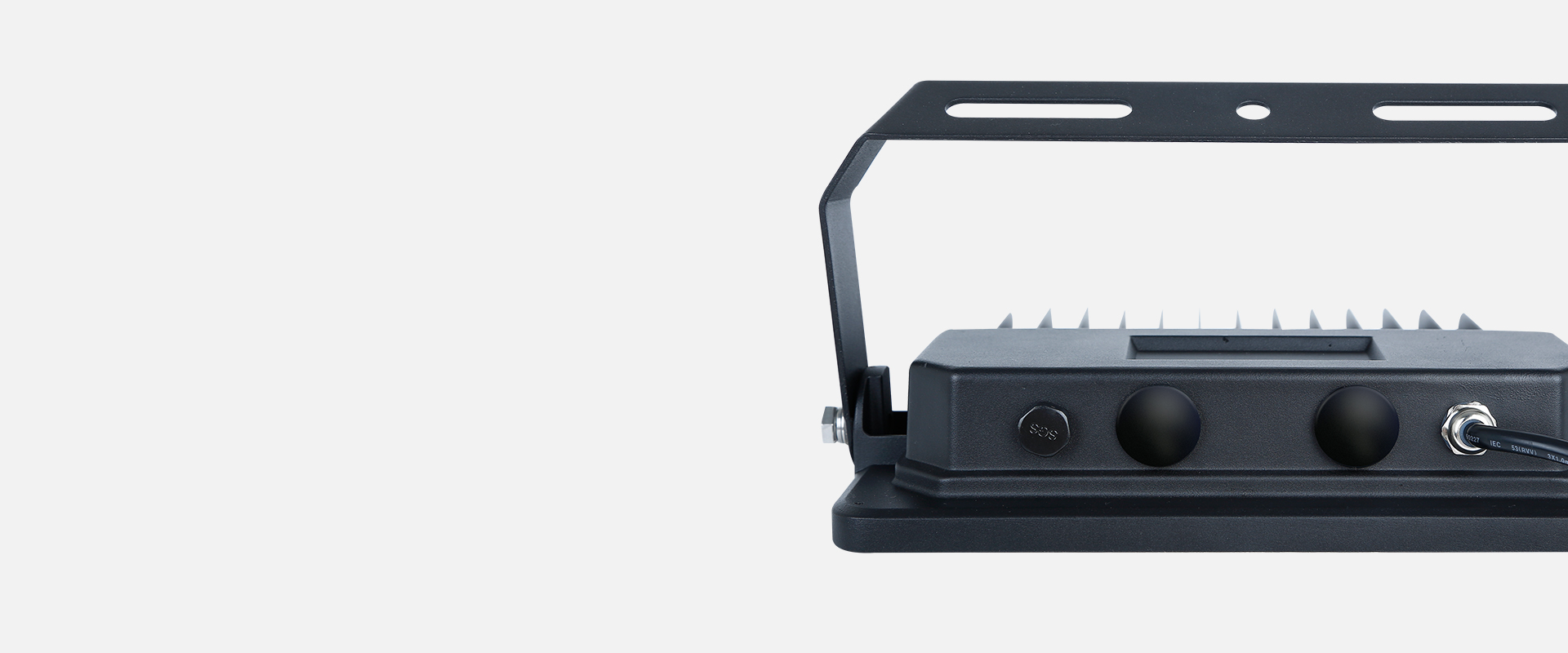

Strong bracket, more secure installation
CCT and power selectable Option 2
Technical Parameter
System Efficiency150LM/W
Beam Angle30°, 60°, 90° 120°,30*150°，50*120°
CCT2700-6500K
CRI>70
Voltage InputAC200~240V
|
30W |
50W |
75W |
100W |
120W |
|
BA3-3030W |
BA3-3050W |
BA3-3075W |
BA3-3100W |
BA3-3120W |
|
230*290*48 (mm) |
230*290*48 (mm) |
300*310*53 (mm) |
300*310*53 (mm) |
300*360*53 (mm) |
|
150W |
180W |
200W |
240W |
300W |
|
BA3-3150W |
BA3-3180W |
BA3-3200W |
BA3-3240W |
BA3-3300W |
|
300*360*53 (mm) |
350*370*53 (mm) |
350*370*53 (mm) |
400*430*58 (mm) |
400*430*58 (mm) |
|
400W |
500W |
600W |
|
|
|
BA3-3400W |
BA3-3500W |
BA3-3600W |
|
|
|
560*555*76 (mm) |
560*555*76 (mm) |
630*630*76 (mm) |
|
|

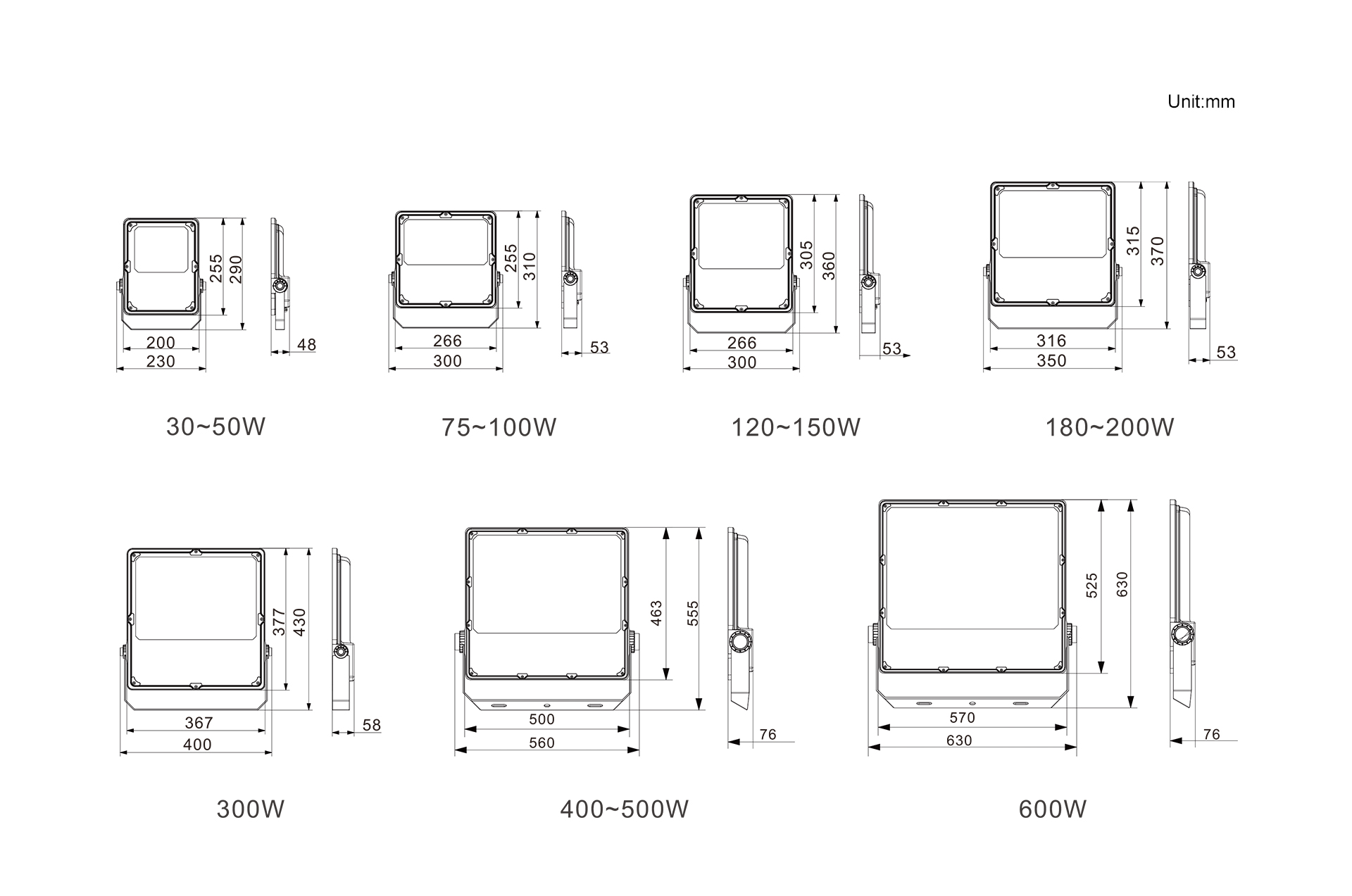

Product Size

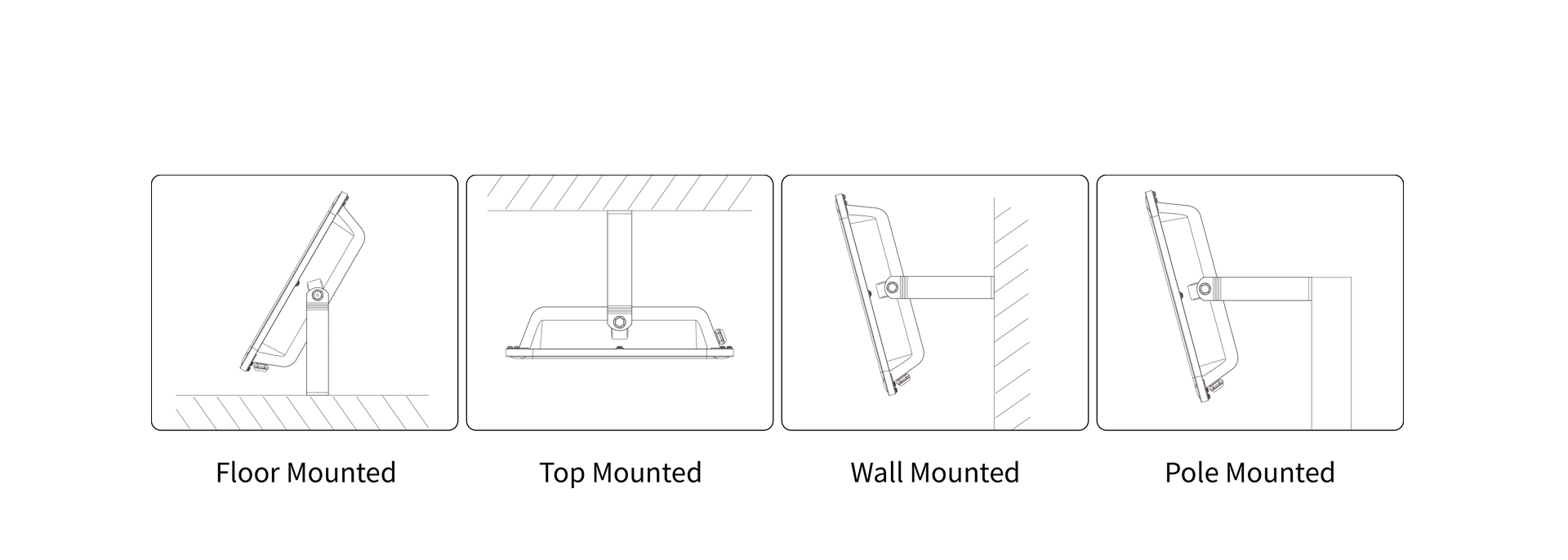

Installation
