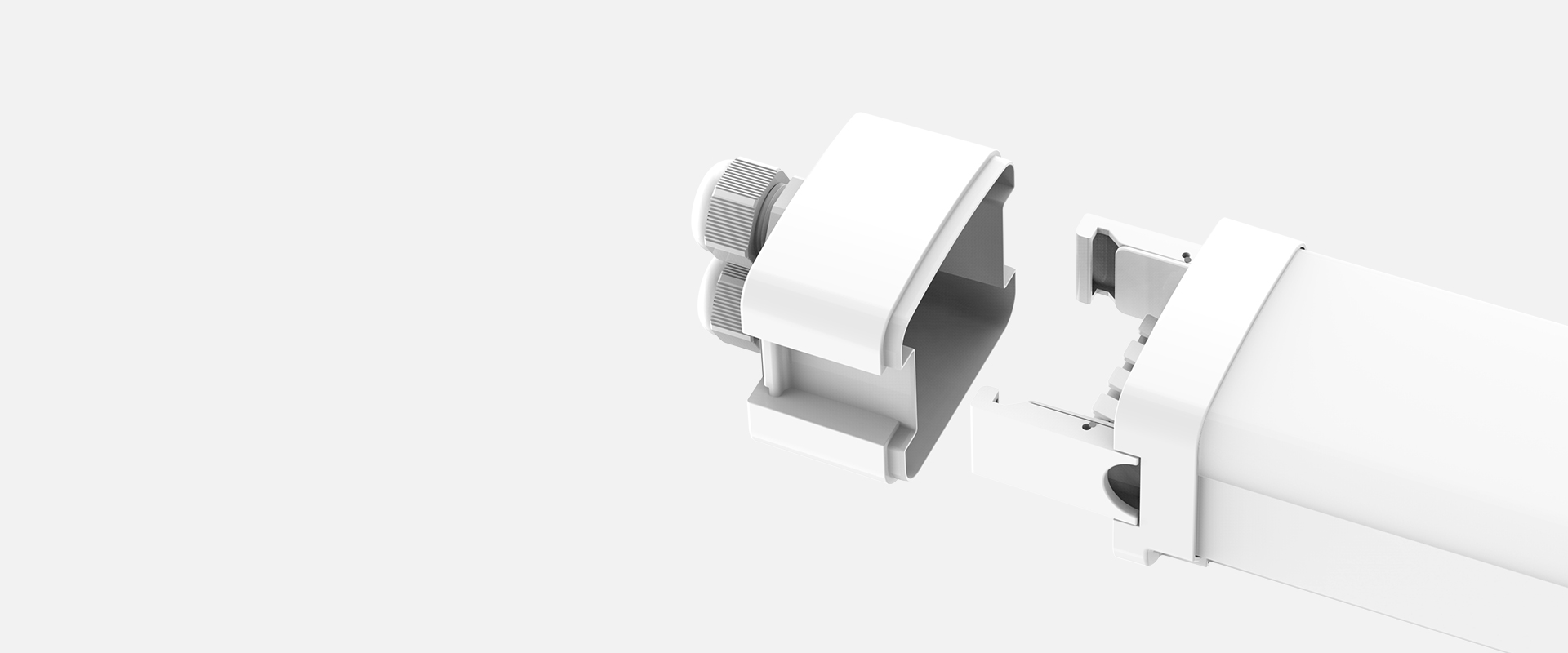

Pull-out design
Convenient for replacing lensand power supply,
Easy to maintain

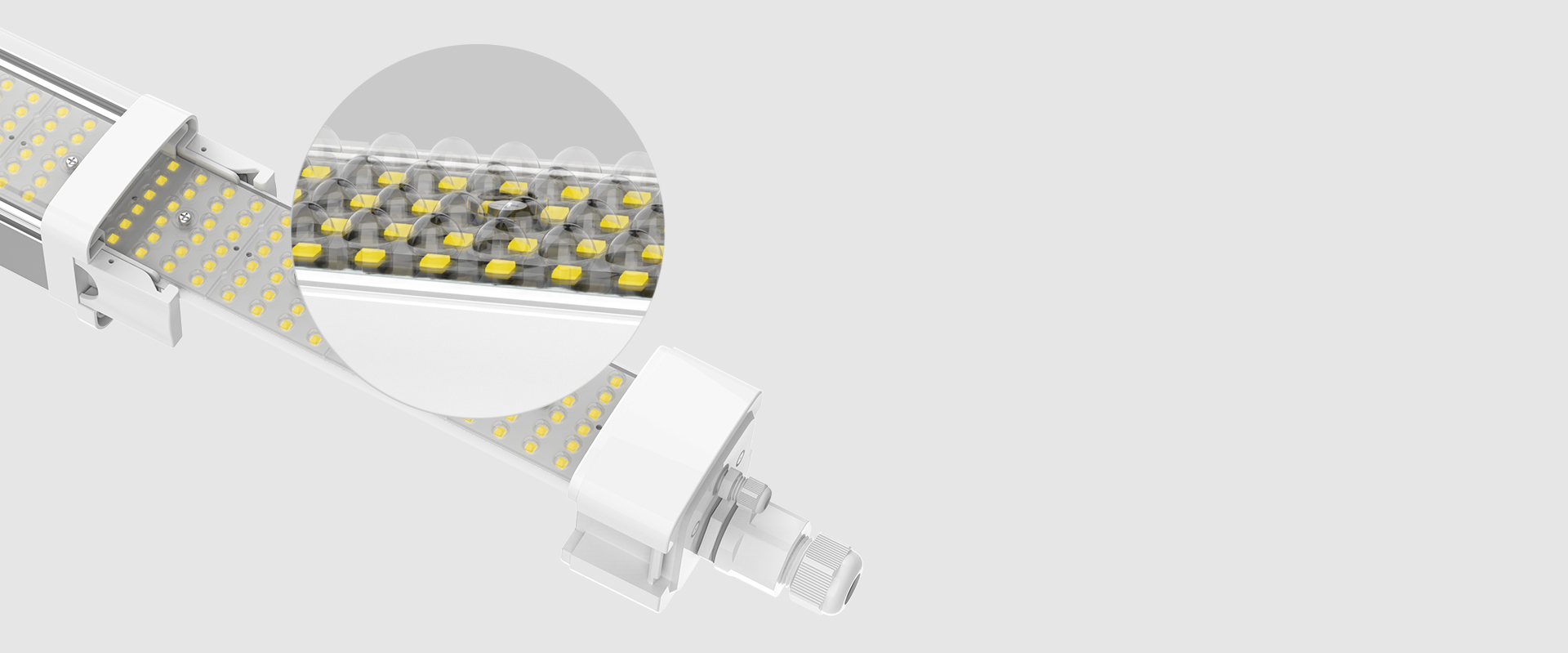

PC material Optical lens
Professional distribution for different application
Simple Disassembly
Ultra-thin die-cast aluminum design
Fast heat dissipation,prolong the life of lamps
Technical Parameter
System Efficiency170LM/W
Beam Angle30°, 60°, 90° 120°, T1M T2M, T3M
CCT2700-6500K
CRI>80
Voltage InputAC220~240V
|
|
20W Non-Dim. (Wattage Adjustable) 11/14/17/20W TP04B-06201F 600*74*63 (mm) |
60W Non-Dim. (Wattage Adjustable) 35/43/50/60W TP04B-12601F 1200*74*63 (mm) |
77W Non-Dim. (Wattage Adjustable) 52/60/66/77W TP04B-15771F 1500*74*63 (mm) |
|
|
|
20W Emergency (Wattage Adjustable) 11/14/17/20W TP04B-06201F 600*74*63 (mm) |
60W Emergency (Wattage Adjustable) 35/43/50/60W TP04B-12601F 1200*74*63 (mm) |
77W Emergency (Wattage Adjustable) 52/60/66/77W TP04B-15771F 1500*74*63 (mm) |
|
|
|
20W DALI-Dim. 20W TP04B-06201F 600*74*63 (mm) |
60W DALI-Dim. 60W TP04B-12601F 1200*74*63 (mm) |
77W DALI-Dim. 77W TP04B-15771F 1500*74*63 (mm) |
|

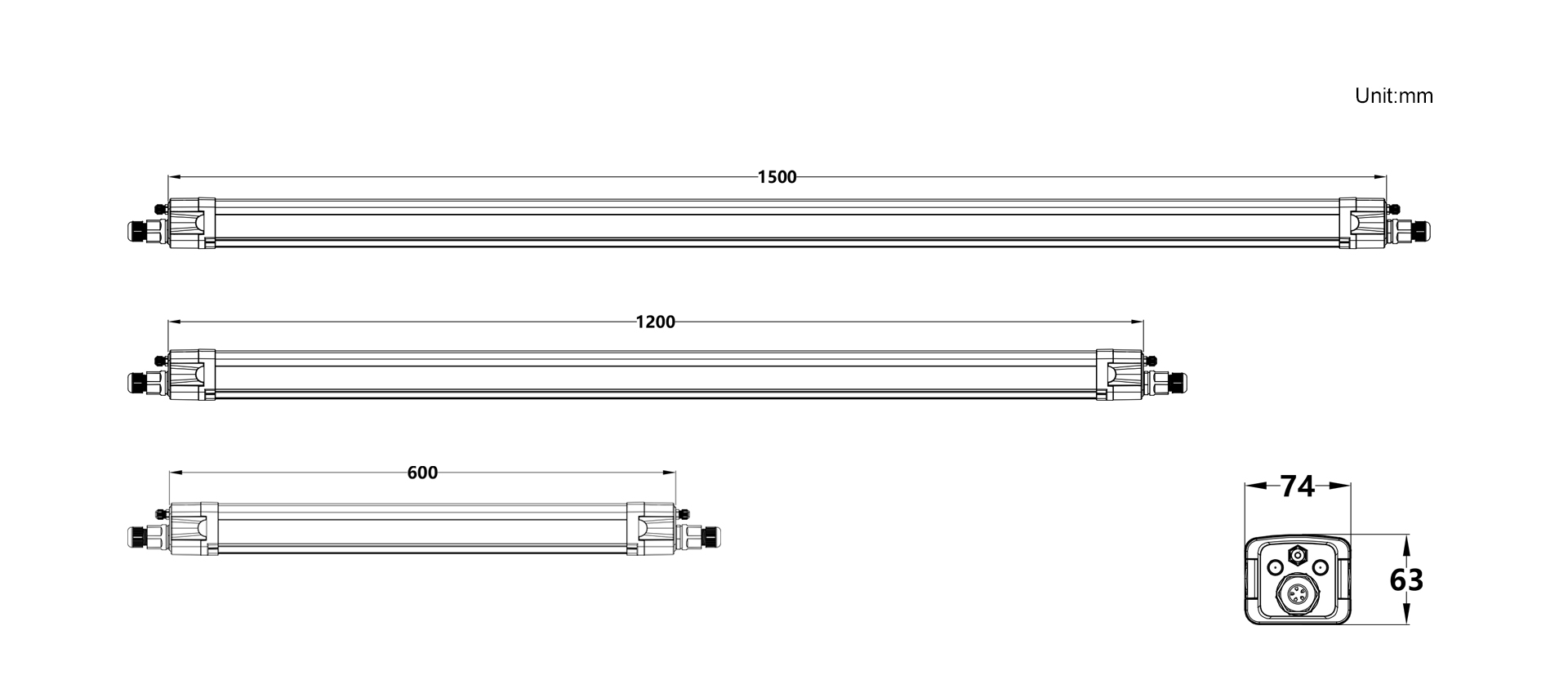

Product Size
