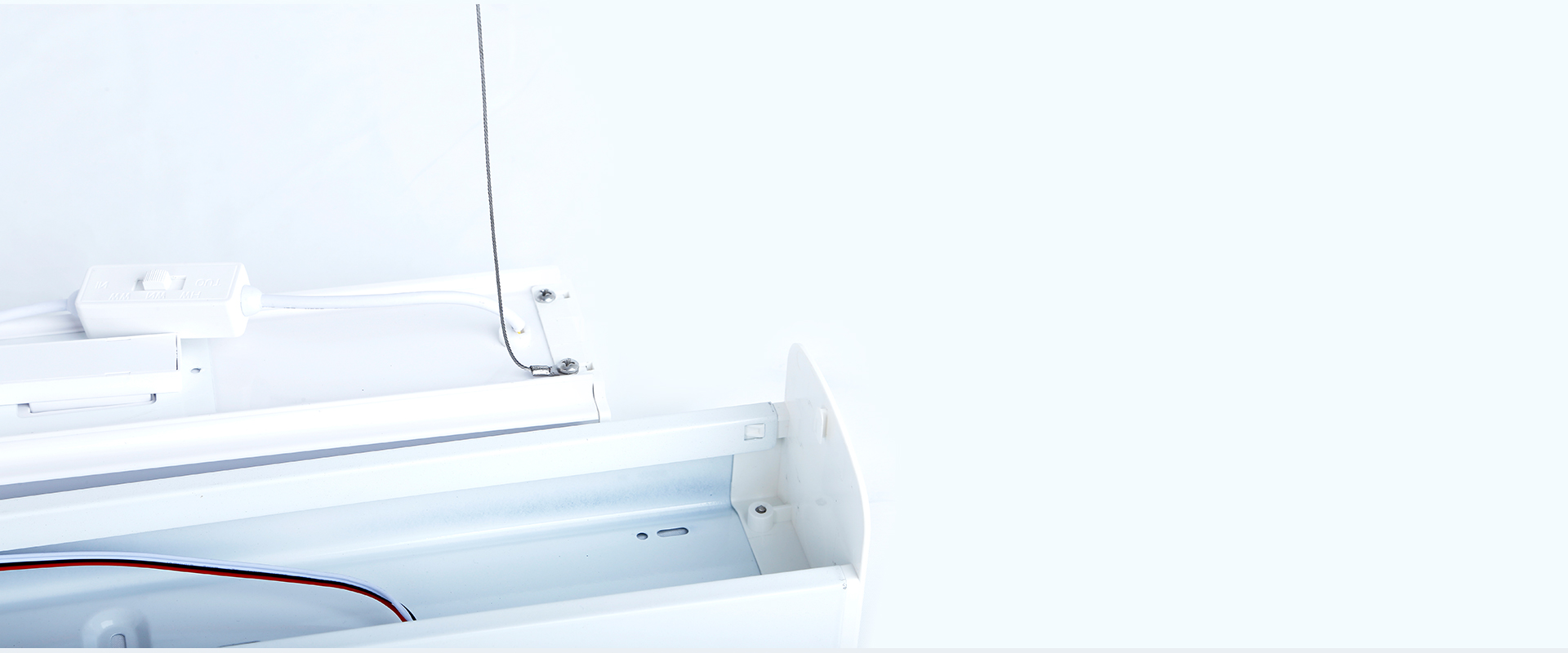

Ultra-narrow edge design
wider application range,easier and more
convenient disassembly

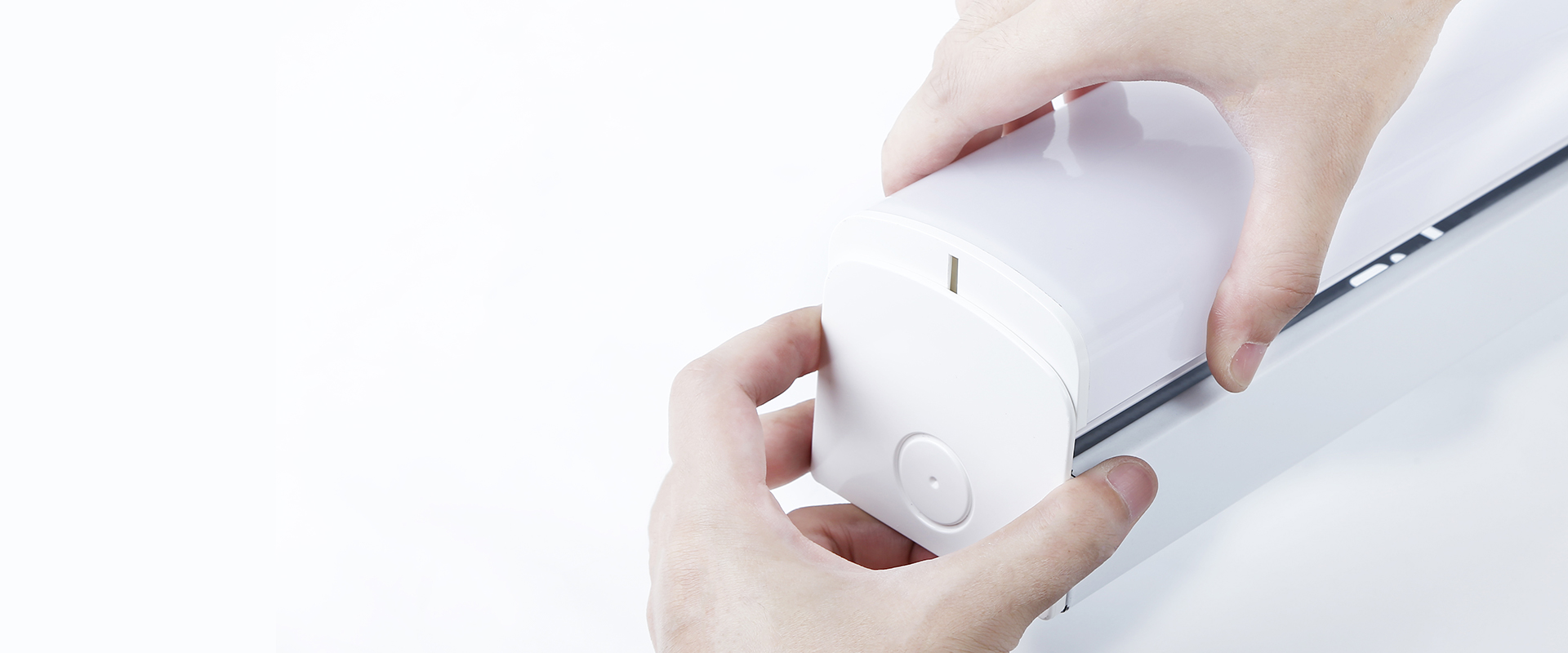

Saftey clip to enable
easy installation

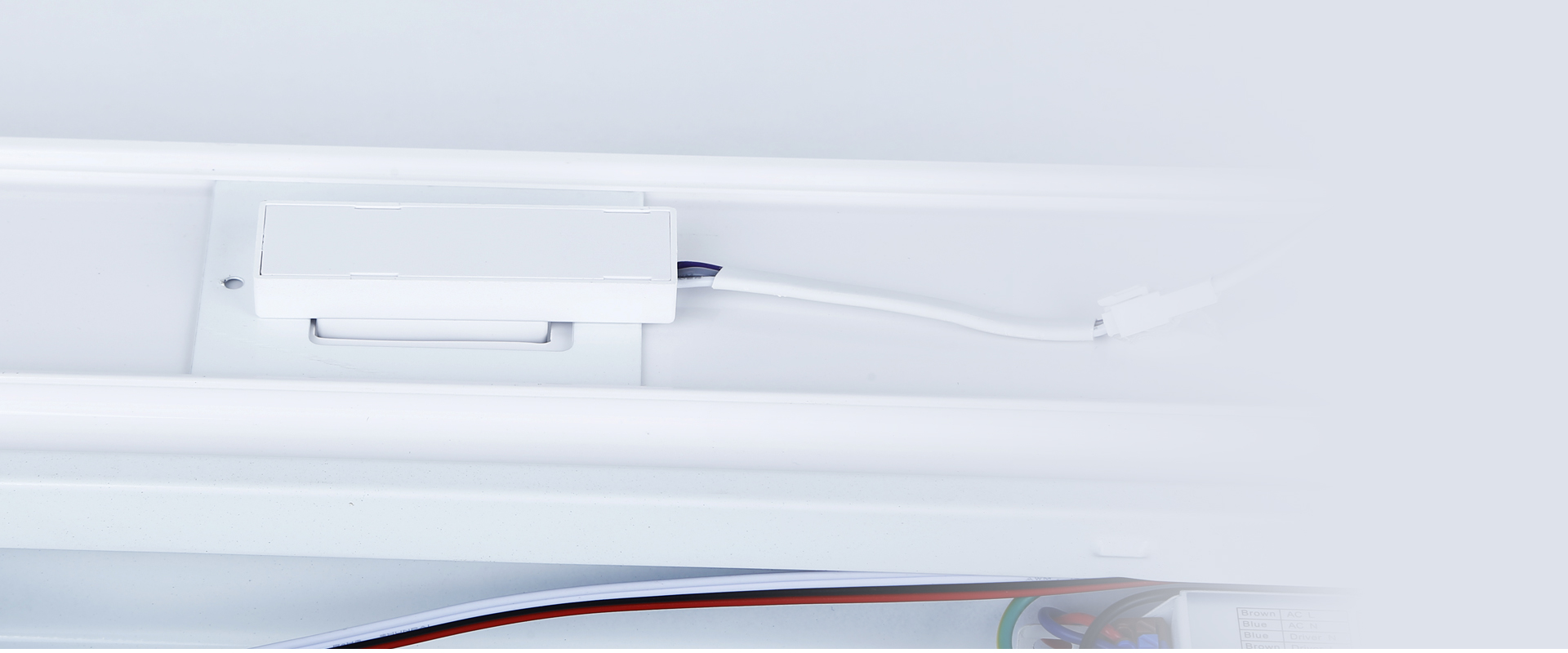

Motion&Daylight Sensor
(ON/OFF & Dimming)
Technical Parameter
System Efficiency150LM/W
Beam Angle120°
CCT2700-6500K
CRI>80
Voltage InputAC220~240V
|
20W |
20W |
20W |
20W |
|
Non-Dim. |
Sensor |
Emergency |
Emergency Sensor |
|
(Wattage Adjustable) |
(Wattage Adjustable) |
(Wattage Adjustable) |
(Wattage Adjustable) |
|
11/14/17/20 |
11/14/17/20 |
11/14/17/20 |
11/14/17/20 |
|
LB04-06203F |
LB04-06203F-S |
LB04-06203F-E |
LB04-06203F-ES |
|
600*80*75 (mm) |
600*80*75 (mm) |
600*80*75 (mm) |
600*80*75 (mm) |
|
40W |
40W |
40W |
40W |
|
Non-Dim. |
Sensor |
Emergency |
Emergency Sensor |
|
(Wattage Adjustable) |
(Wattage Adjustable) |
(Wattage Adjustable) |
(Wattage Adjustable) |
|
24/30/35/40 |
24/30/35/40 |
24/30/35/40 |
24/30/35/40 |
|
LB04-12403F |
LB04-12403F-S |
LB04-12403F-E |
LB04-12403F-ES |
|
1200*80*75 (mm) |
1200*80*75 (mm) |
1200*80*75 (mm) |
1200*80*75 (mm) |

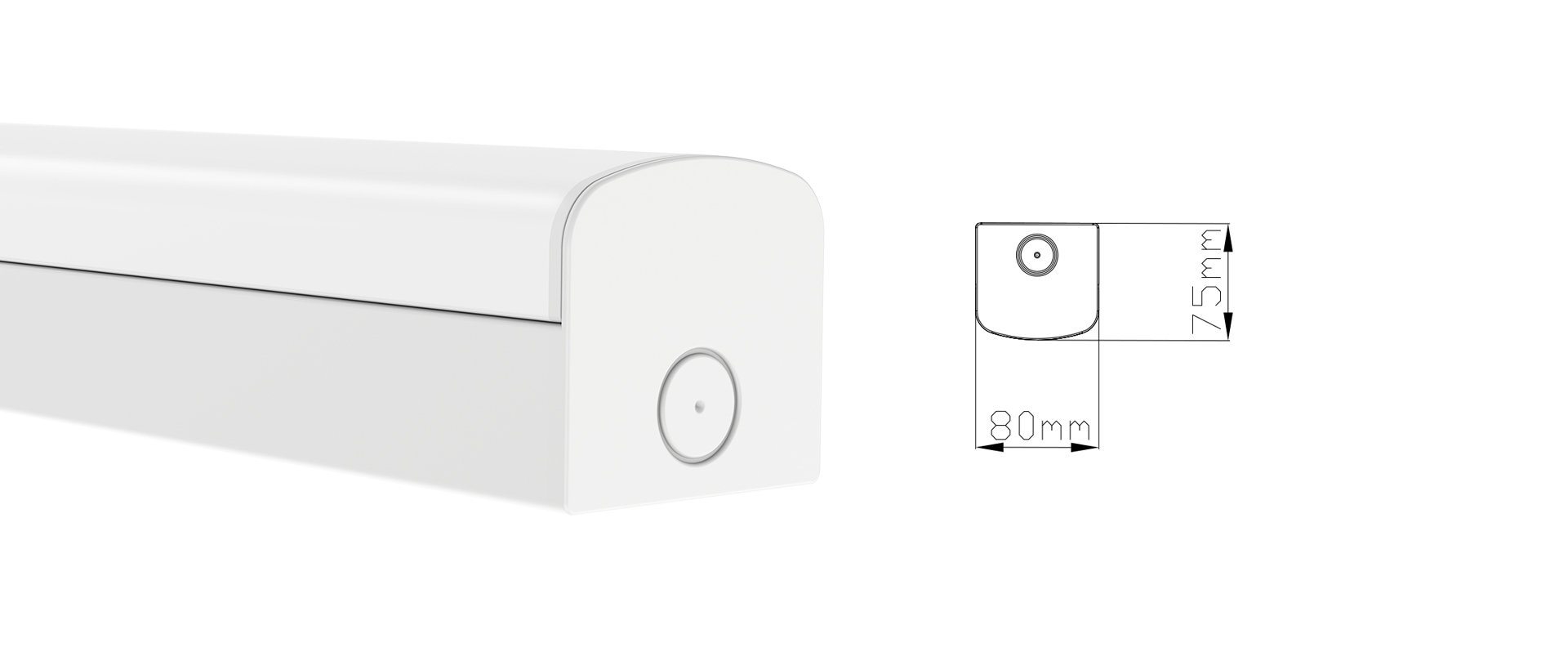

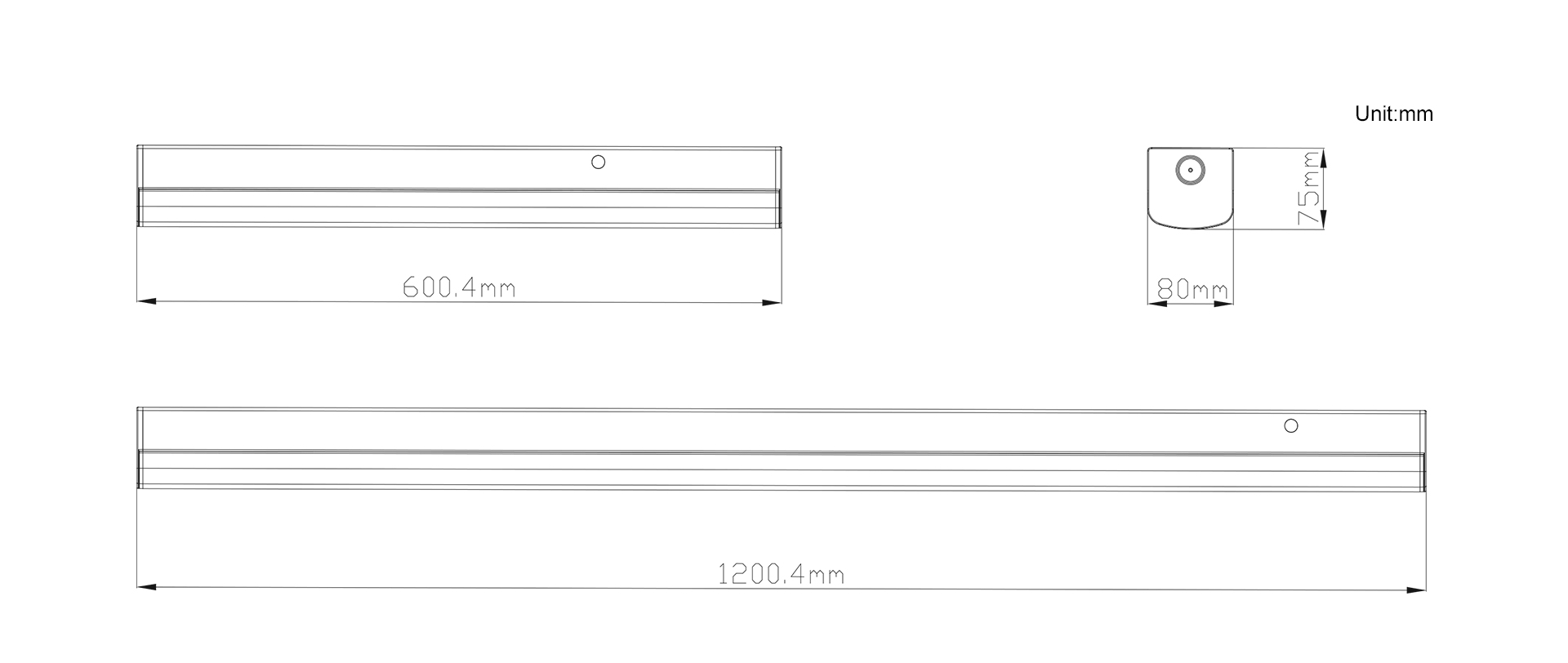

Product Size
