INVENTRONICS/MEANWELL

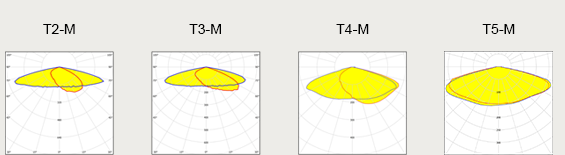

Type I, II, III, IV, V, beam-angles
meet different lighting distribution requirements.
Screwless Driver plate
SKD available

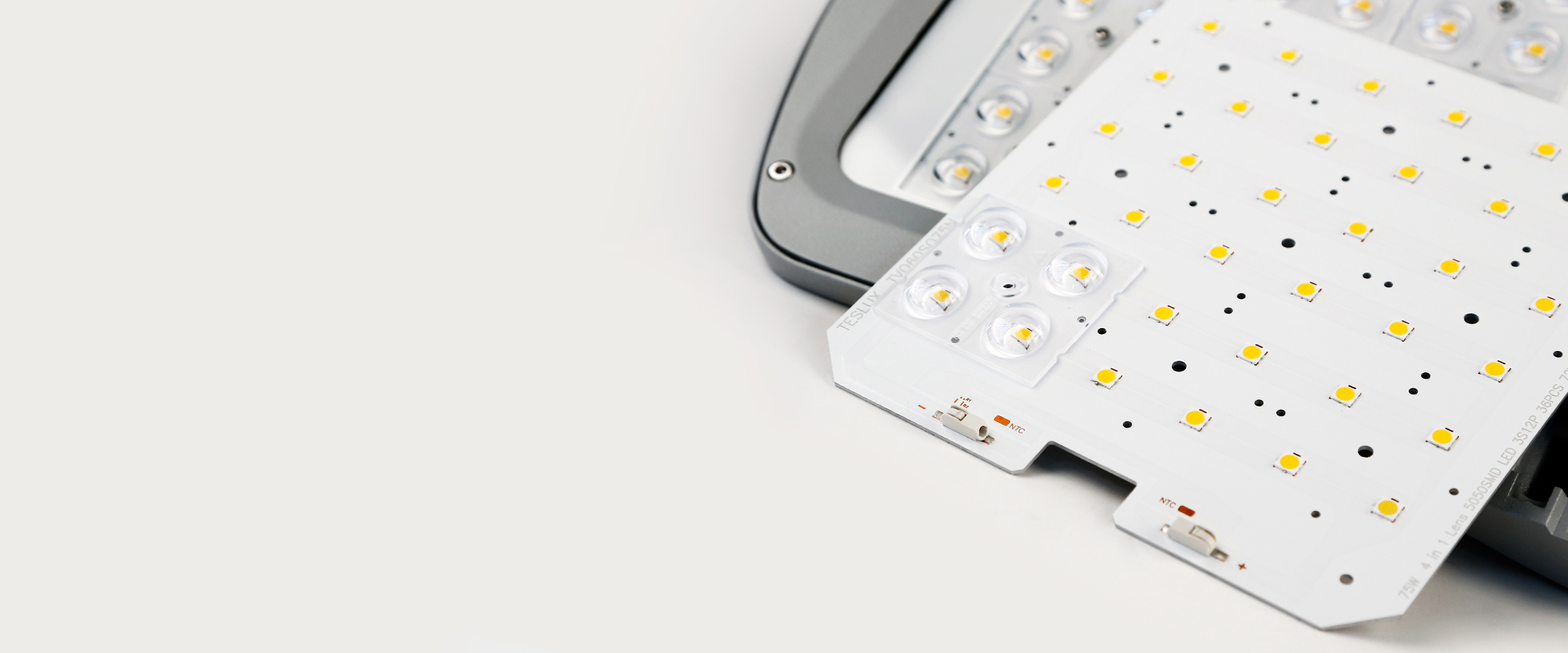

All Part can be designed separate from each other, can be assembled locally very easy.
MEANWELL / INVENTRONICS / SOSEN
etc different famous brand Driver,
whole lamps with ENEC, TUV, CB,CE,SAA,C-Tick,
IP, IK, ERP, LM79 etc. certificated for different market.

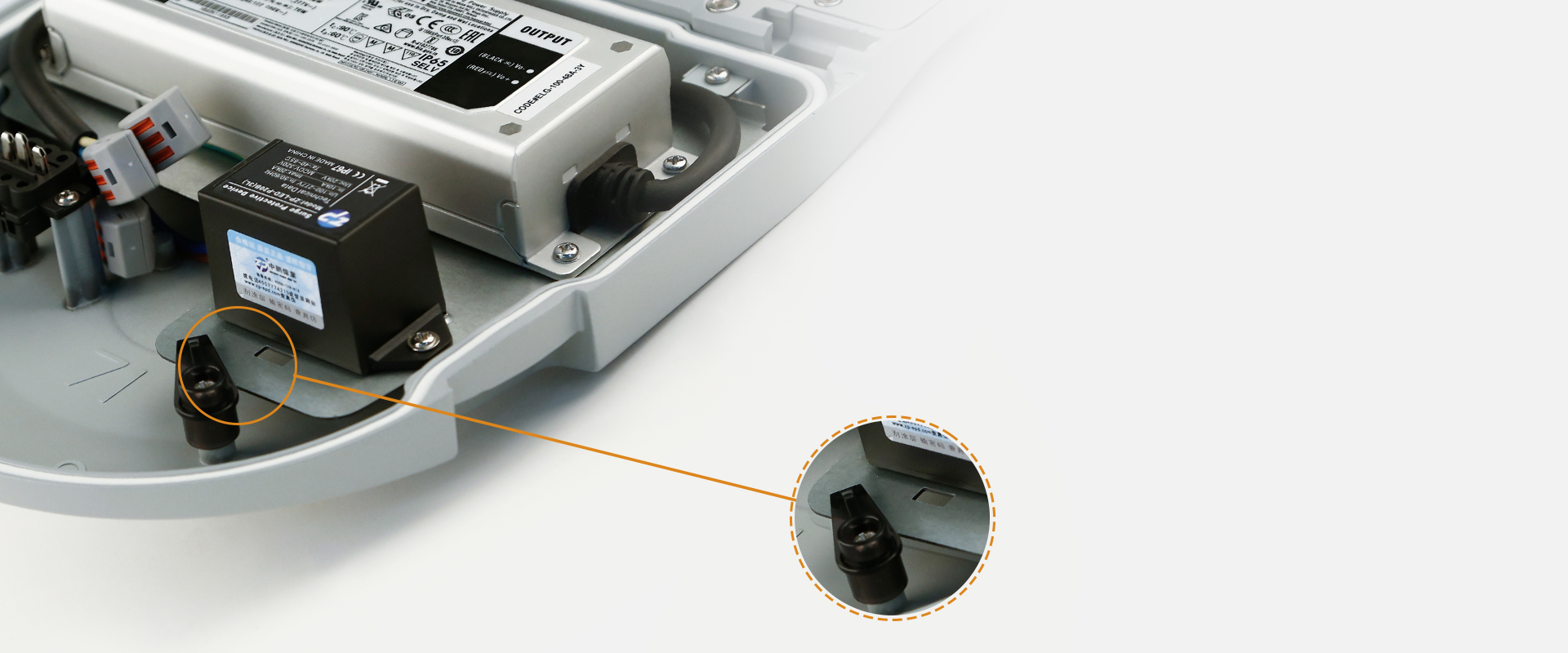

POWER OFF SWITCH
Power off when open the housing to ensure the safety.

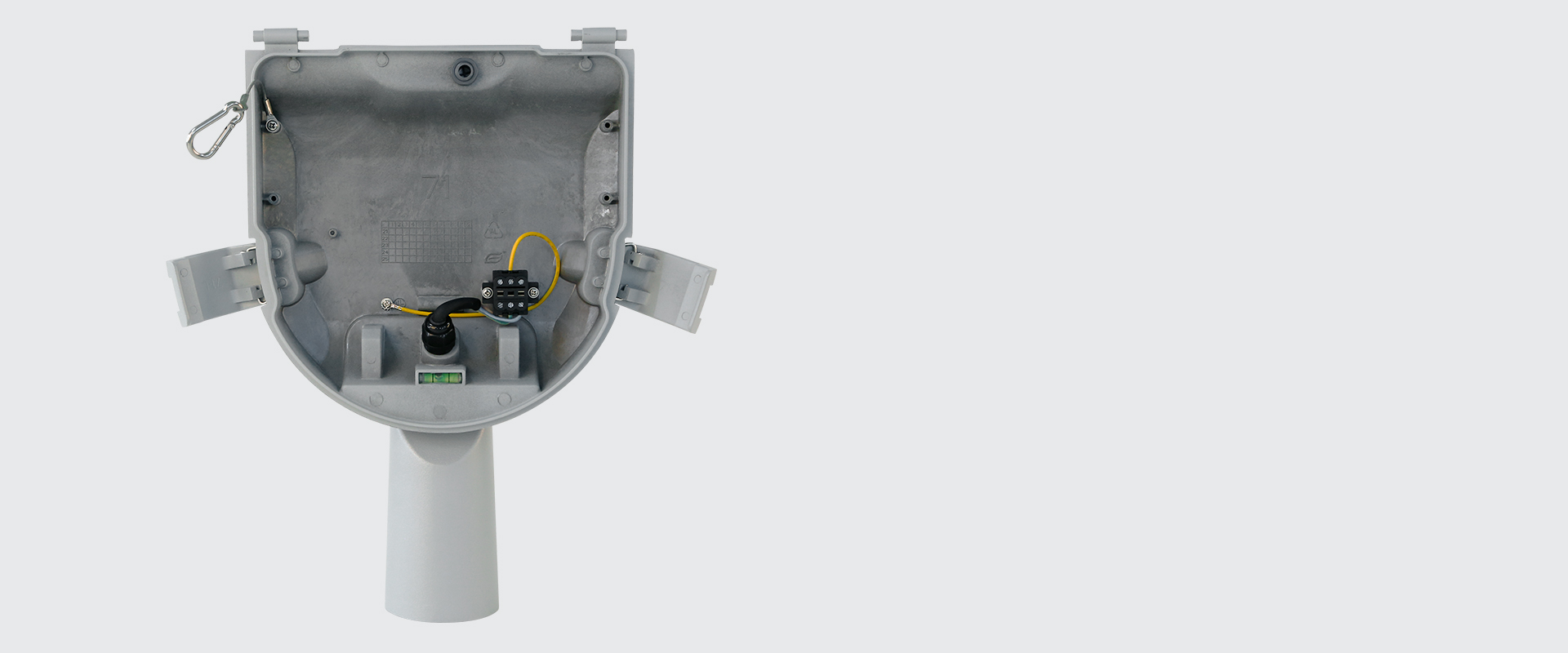

Rope with Carabiner

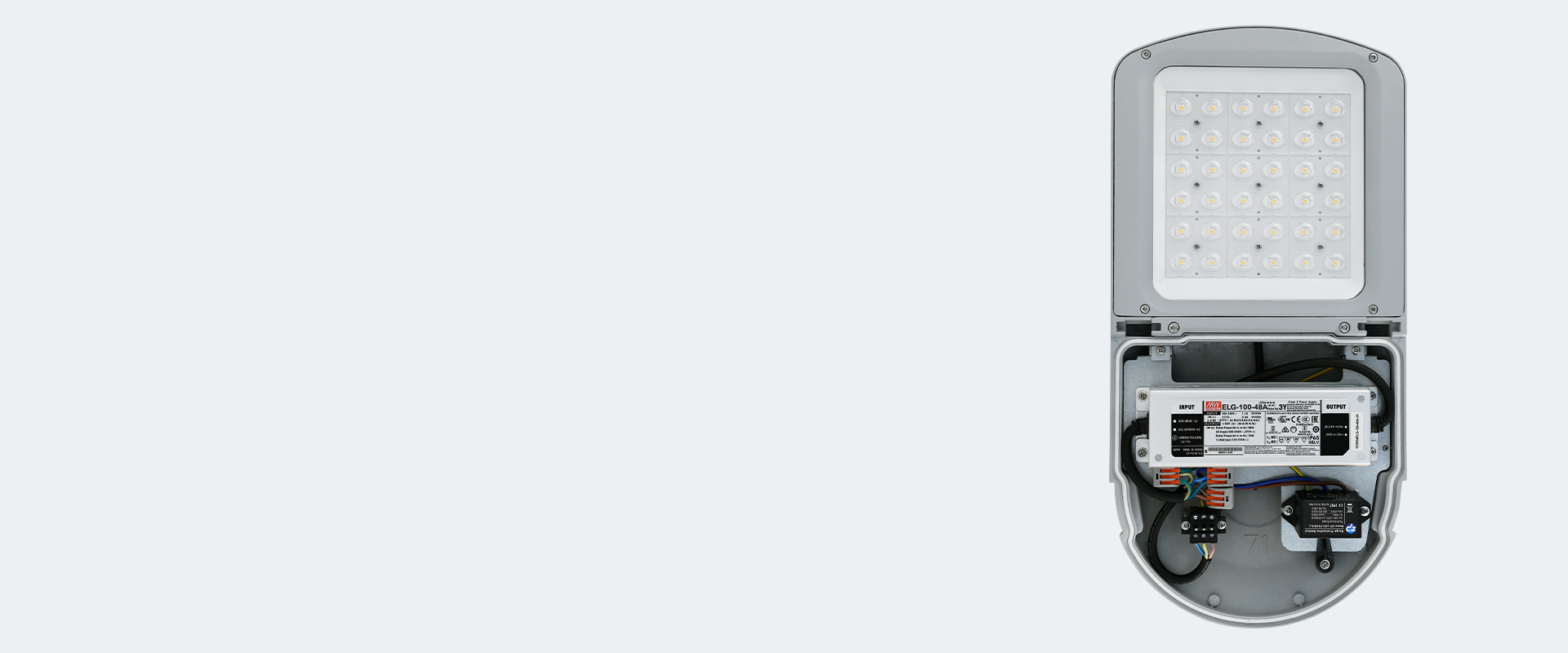

Driver/ Power off Switch/ SPD/ LED Board are all attached to
the housing, separating from the base, workers can take off the
housing together with all electronic parts to shorten working
time at height.

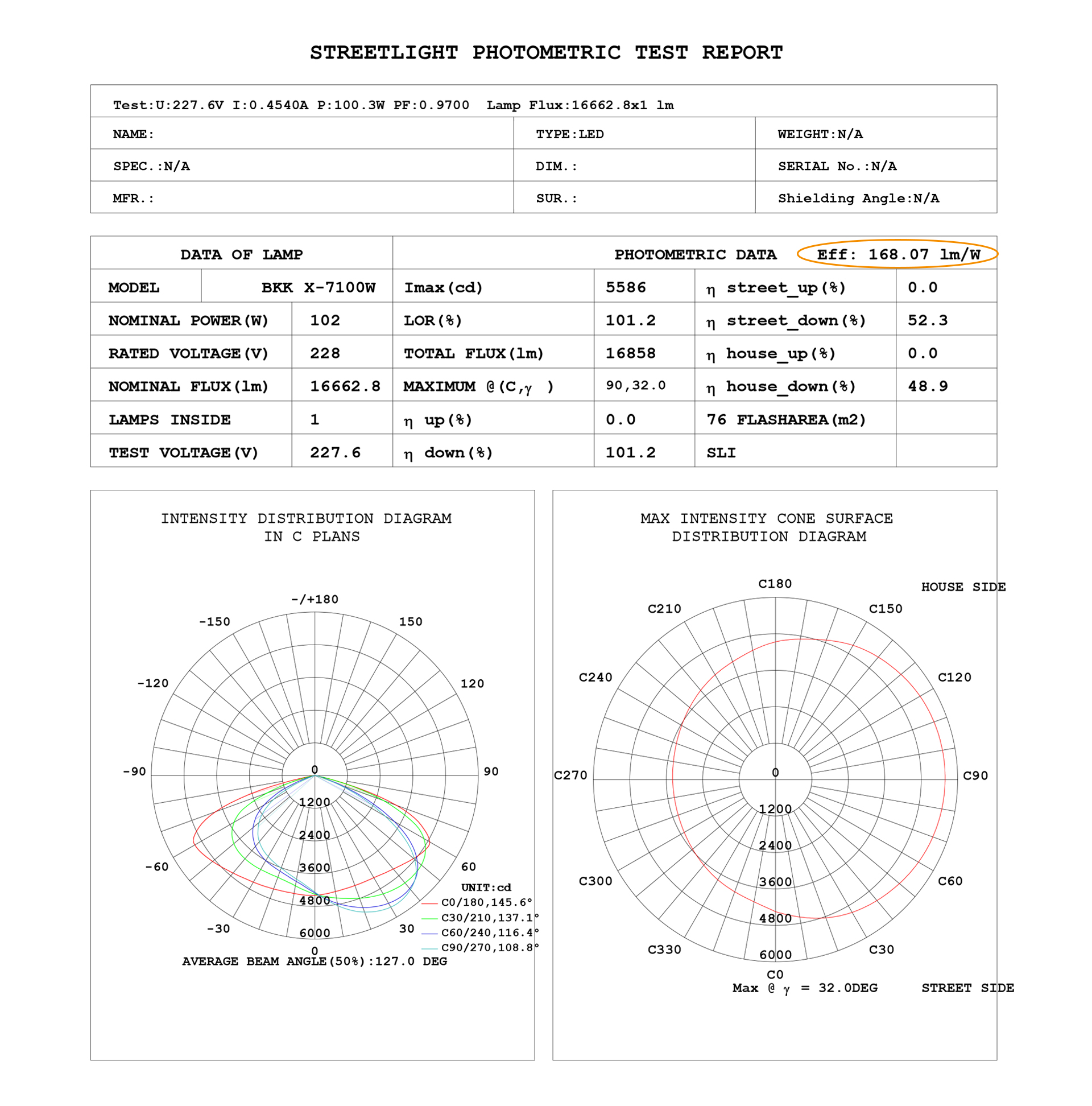

System Efficiency150LM/W 180LM/W
Beam AngleType I, II, III IV, V
CCT2700~6500K
CRI>70 (CRI>80 optional)
Voltage InputAC200~240V
|

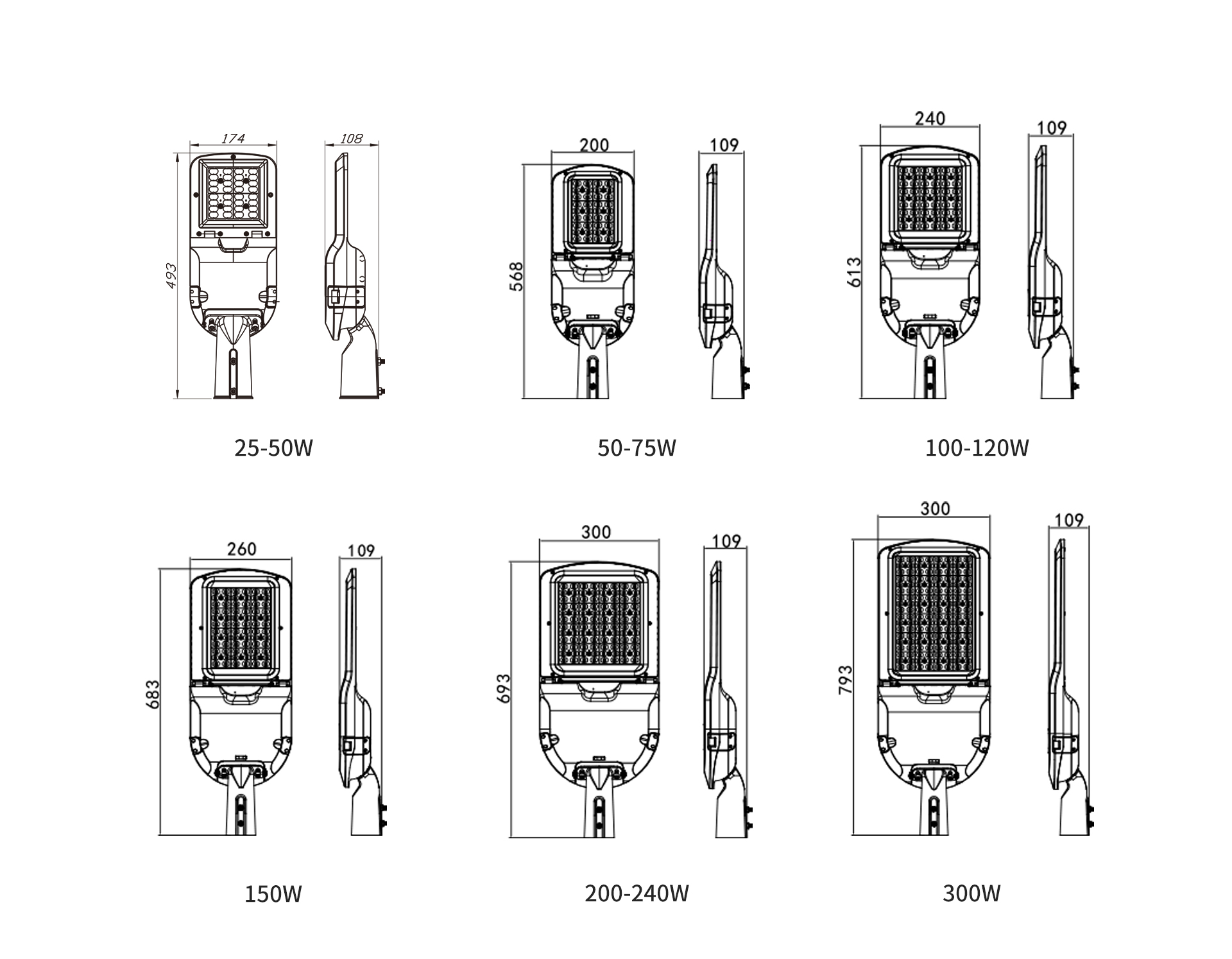

25W BKK X-7025W 493*174*108 (mm) |
50W BKK X-7050W 493*174*108 (mm) |
50W BKK X-7050W 568*200*109 (mm) |
75W BKK X-7075W 568*200*109 (mm) |
100W BKK X-7100W 613*240*109 (mm) |
|
120W BKK X-7120W 613*240*109 (mm) |
150W BKK X-7150W 683*260*109 (mm) |
200W BKK X-7200W 693*300*109 (mm) |
240W BKK X-7240W 693*300*109 (mm) |
300W BKK X-7300W 793*300*109 (mm) |
