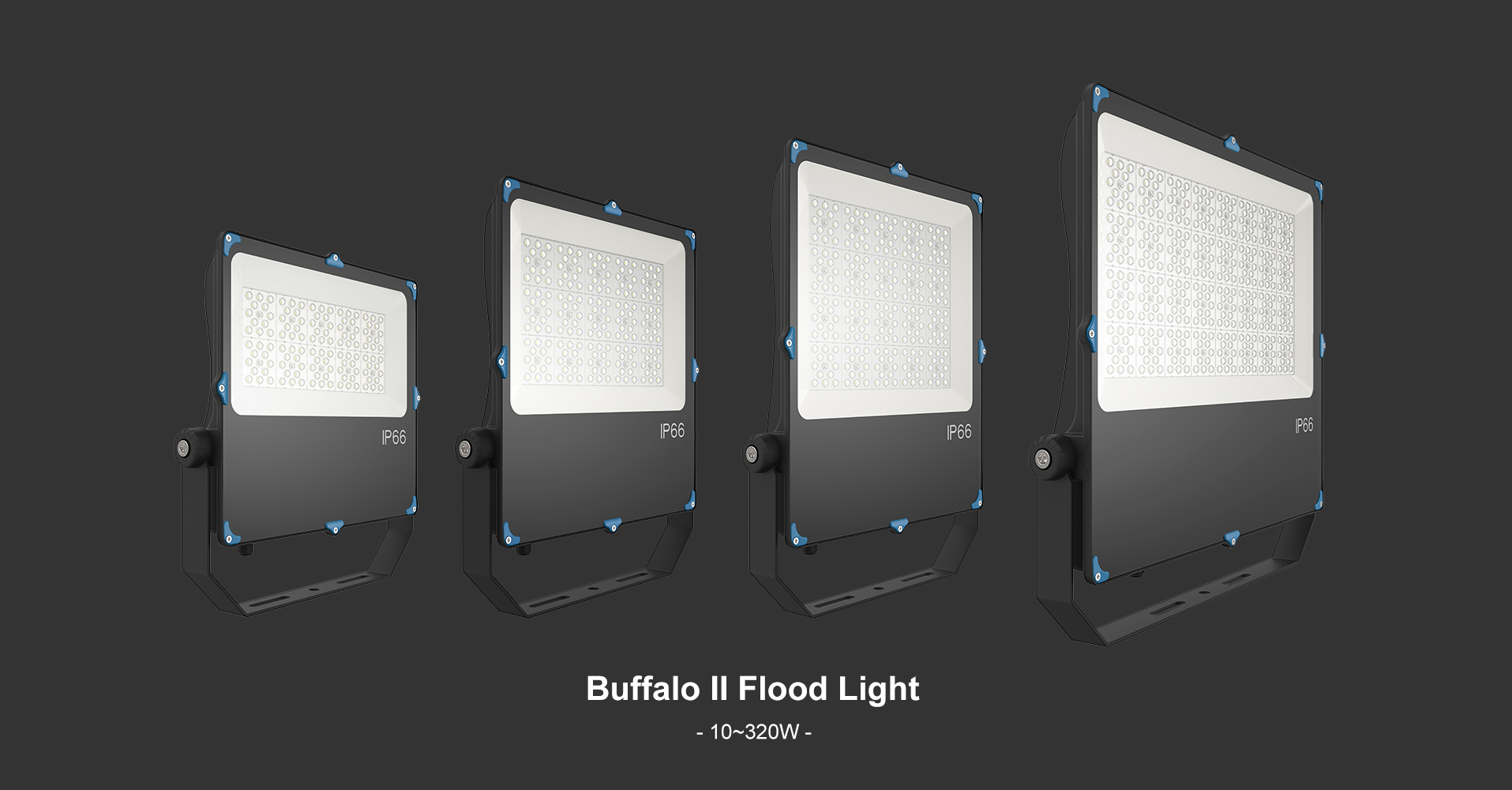

MEANWELL / INVENTRONICS

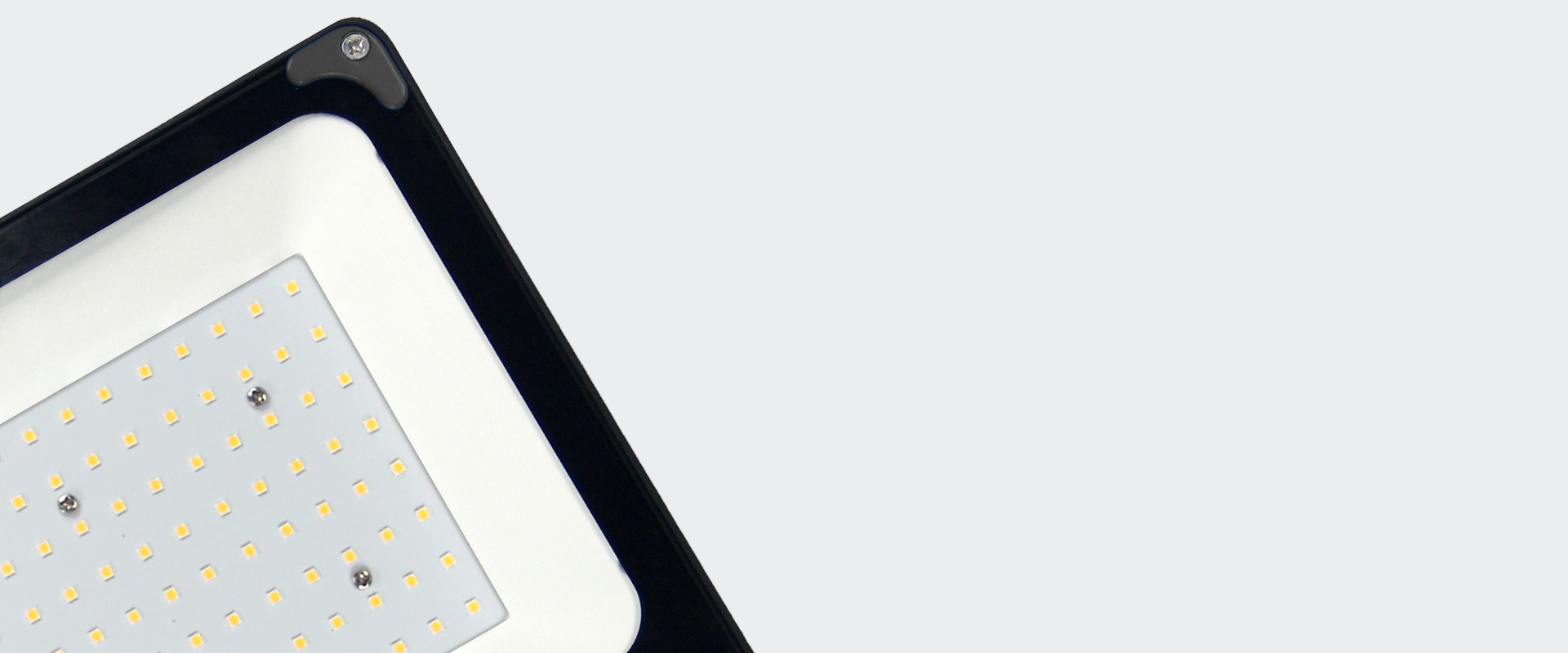

Brand Driver and Lumileds SMD3030 Chips with 160LM/W,
Various 7°/15°/30°/60°/90°/120°/Asymmetrical Optic lens Optional.

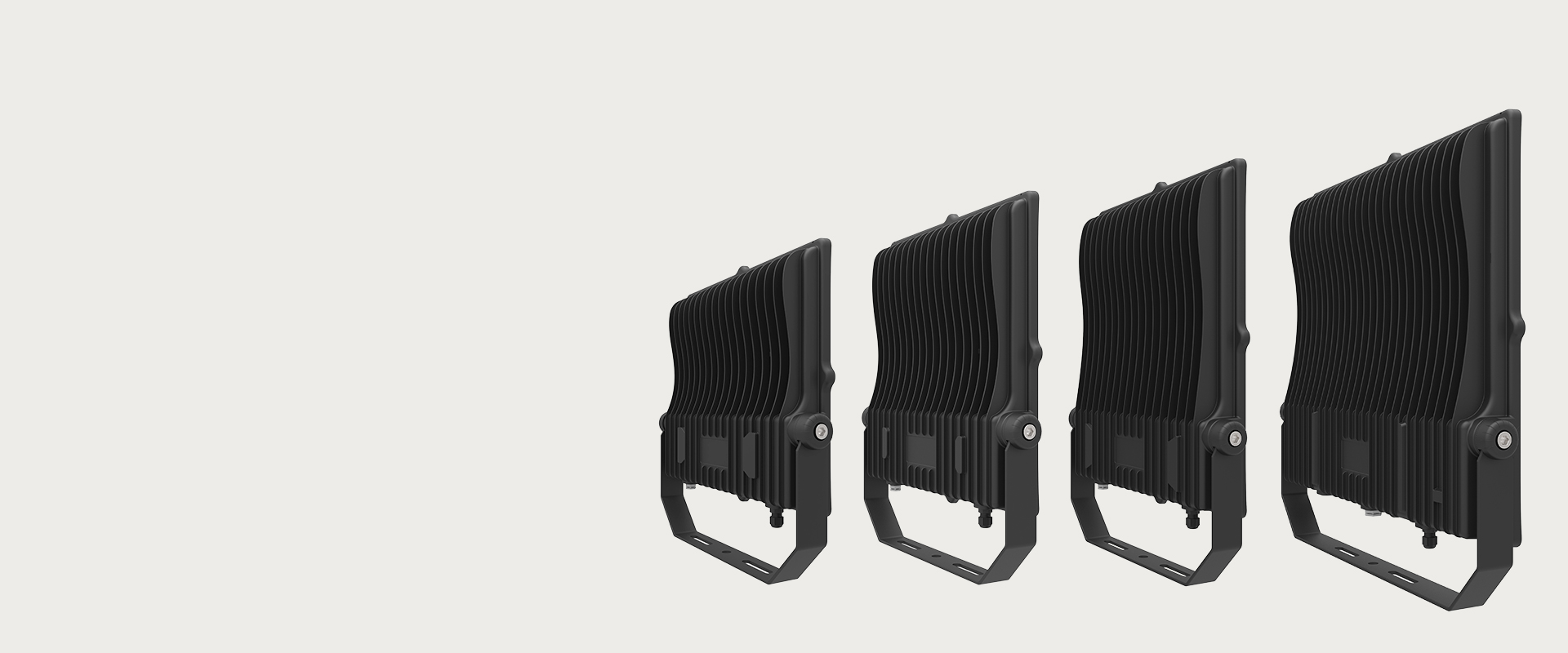

DIE CASTING housing
Hot air convection design, for better heat dispassion.
OEM without MOQ
Various wattage from 10-300W available.

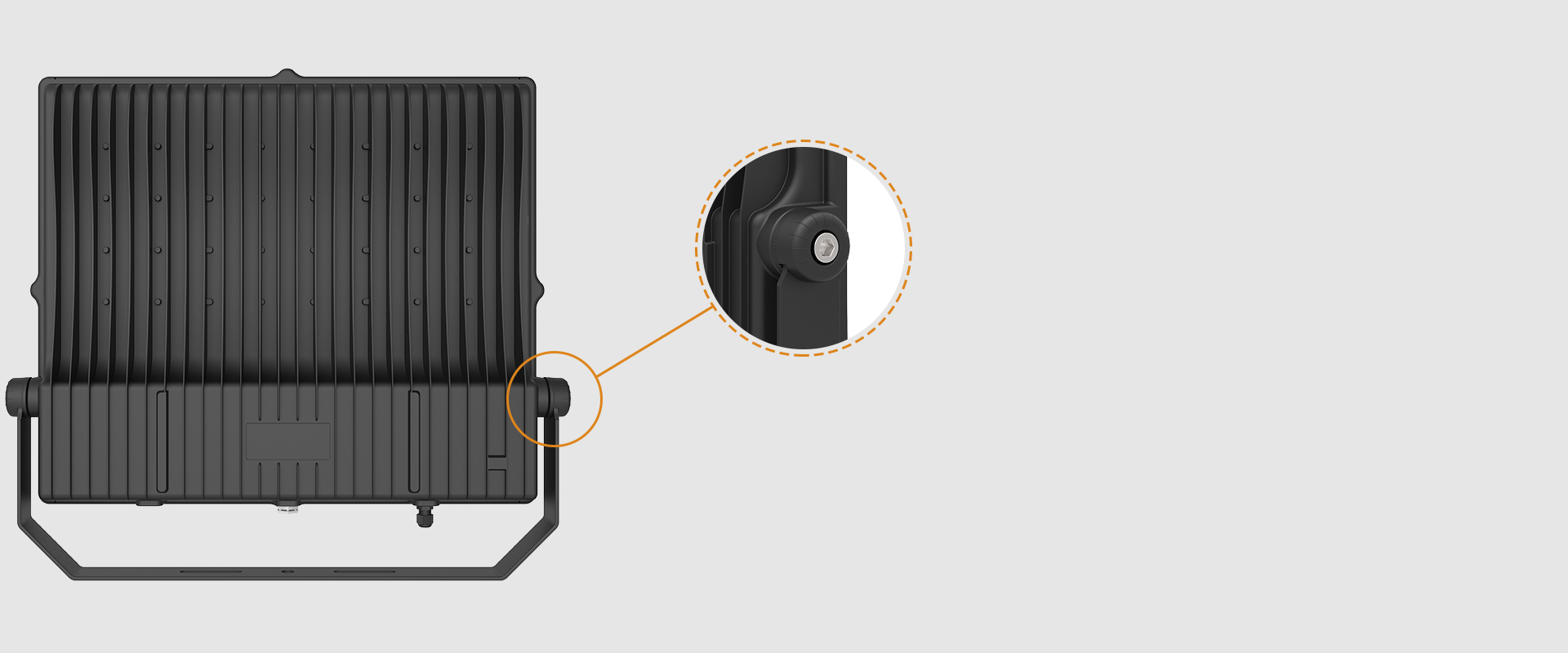

STRONG BRACKET
With 330°adjustable for different direction.
Technical Parameter

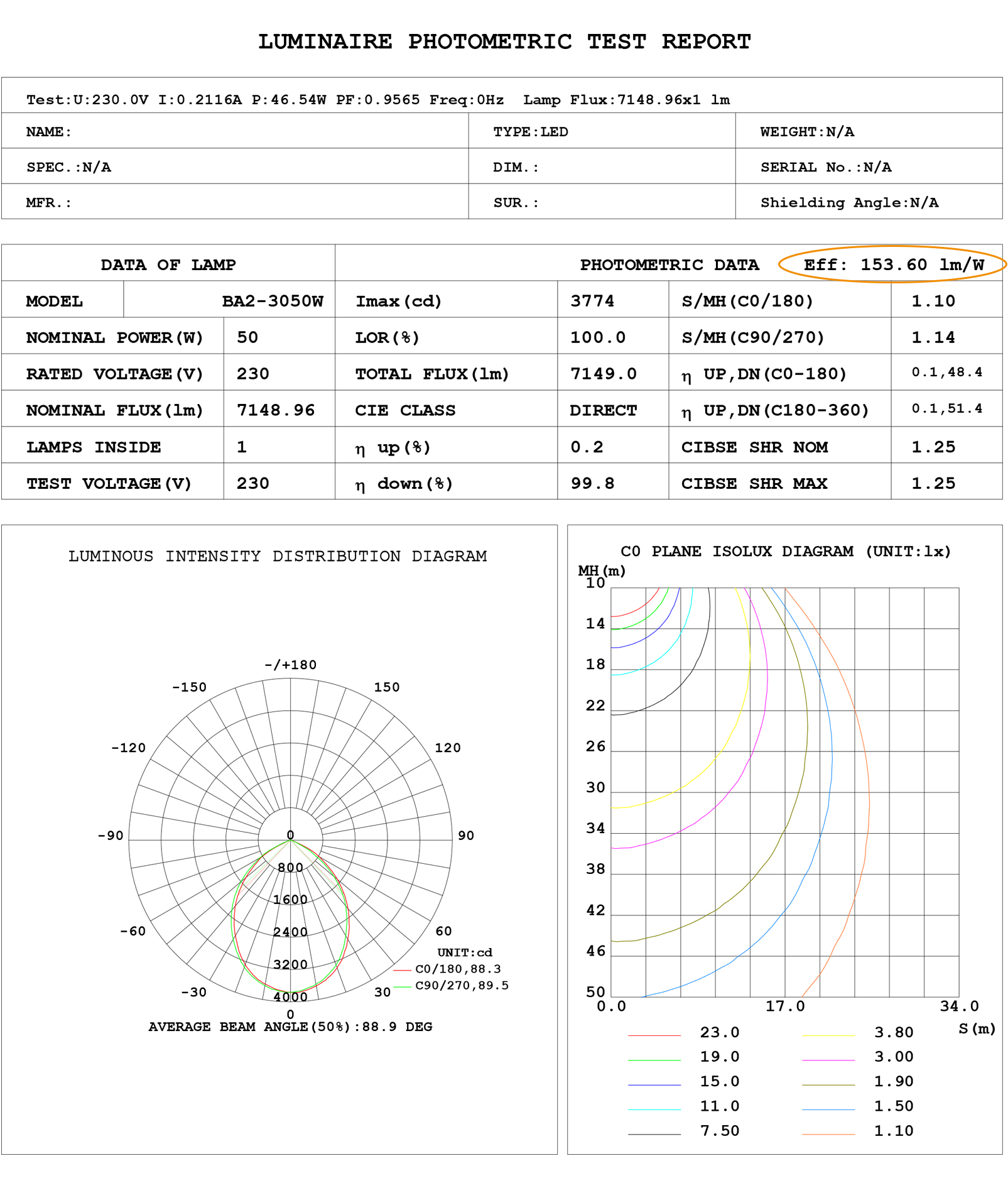

System Efficiency140LM/W 160LM/W
Beam Angle7°, 15°, 30° 60°, 90°, 120°
CCT3000~6500K
CRI>80
Voltage InputAC200-240V
|
10W BA2-3010W 188*123*47 (mm) |
20W BA2-3020W 248*169*51 (mm) |
30W BA2-3030W 288*228*52 (mm) |
50W BA2-3050W 364*278*52 (mm) |
80W BA2-3080W 394*394*57 (mm) |
|
100W BA2-3100W 394*394*57 (mm) |
150W BA2-3150W 446*393*57 (mm) |
180W BA2-3180W 446*393*57 (mm) |
200W BA2-3200W 497*392*59 (mm) |
240W BA2-3240W 497*392*59 (mm) |
|
300W BA2-3300W 524*546*65 (mm) |
|
|
|

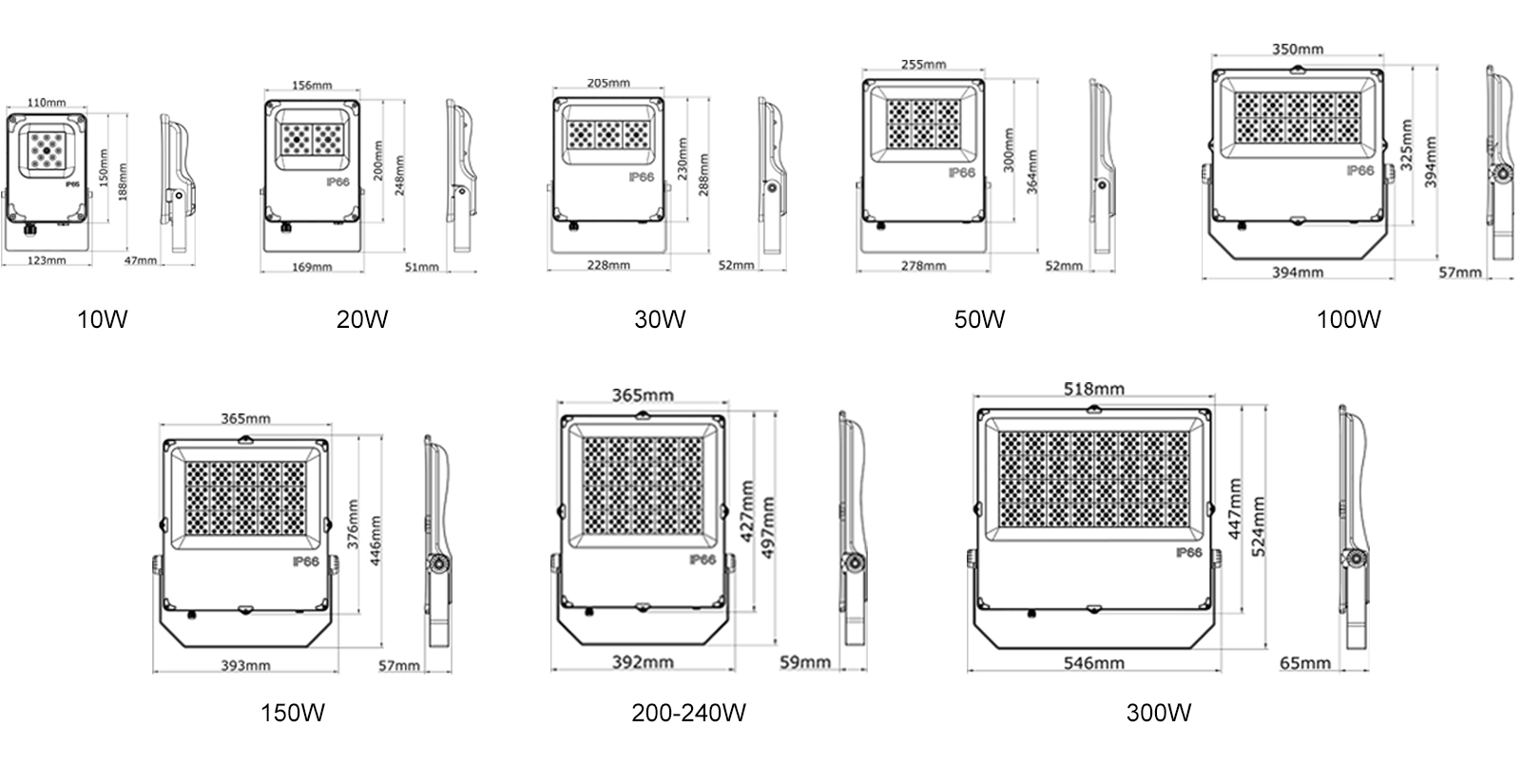

Product Size
