INVENTRONICS / MEANWELL
Driver and lumileds SMD chips with 170Lm/w efficiency.
BEAM ANGLE
Type I, II, III, IV, V, 30°/60°/90°
beam-angles meet different lighting distribution requirements.
DIE CASTING HOUSING
Hot air convection design, for better heat dispassion.
IP66
Elegant appearance design and 5mm thickness glass cover with IK10. IP66.

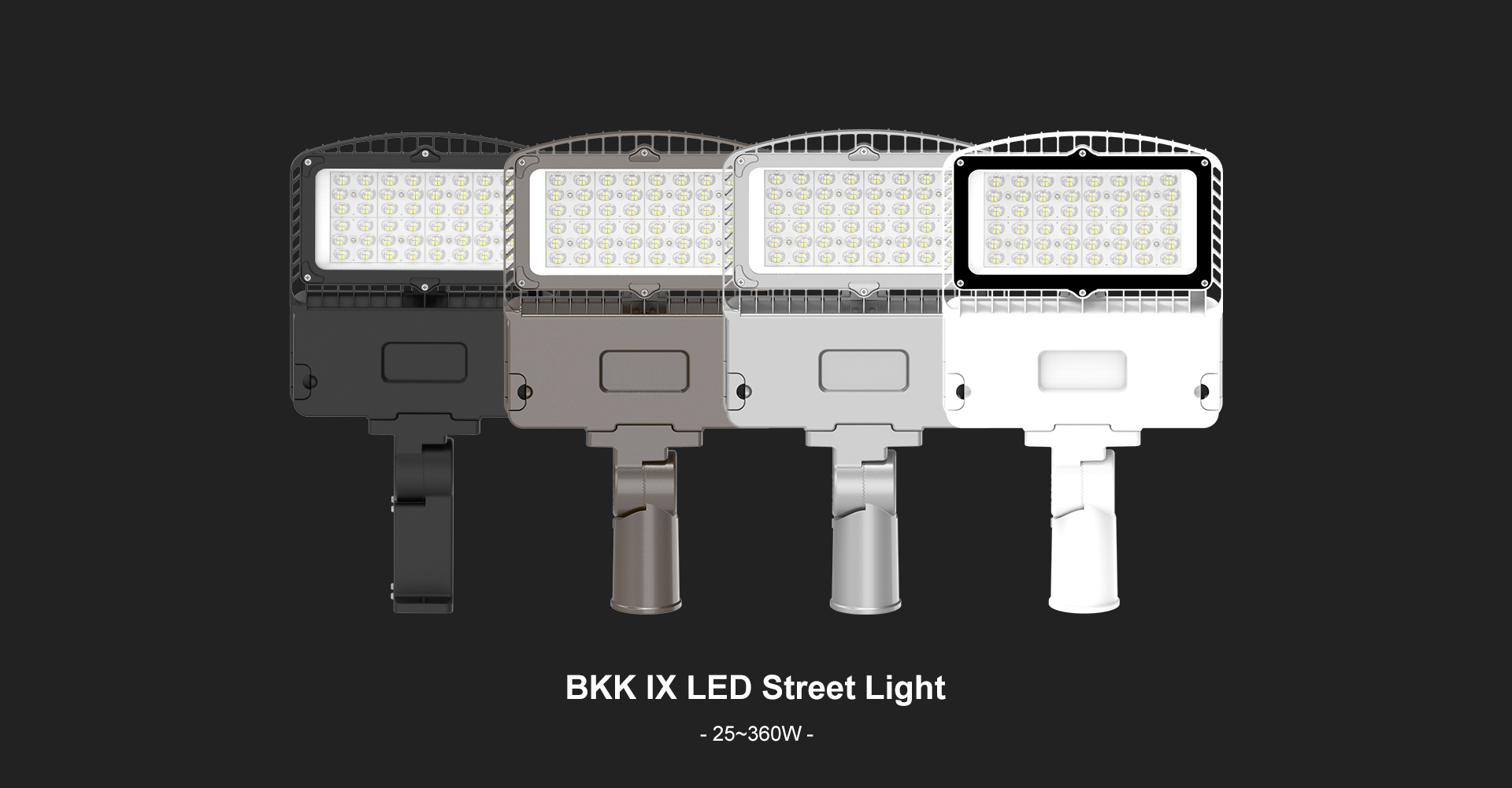

25-360W
Various wattage and Bracket for different application.
TOOL FREE MAINTANCE HOUSING
Open the housing without Screws, Easy for future maintance.

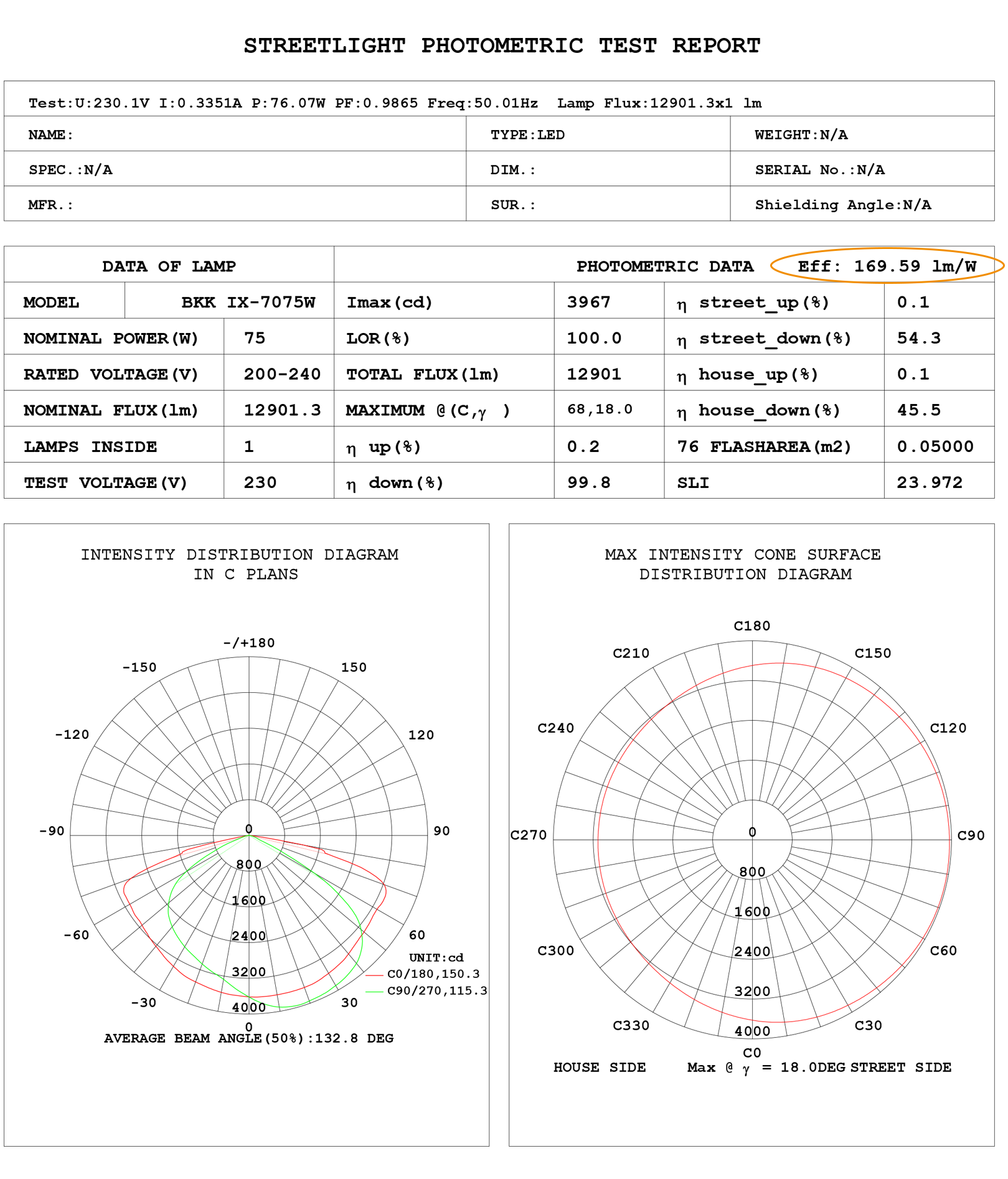

Technical Parameter
System Efficiency150LM/W 170LM/W
Beam AngleType I,II,III,IV,V 30°,60°,90°
CCT3000~6500K
CRI>80
Voltage InputAC200-240V
|
25W BKK IX-7025W 522*205*90(mm) |
50W BKK IX-7050W 522*205*90(mm) |
60W BKK IX-7060W 522*205*90(mm) |
75W BKK IX-7075W 508*291*94(mm) |
100W BKK IX-7100W 508*291*94(mm) |
|
120W BKK IX-7120W 508*291*94(mm) |
150W BKK IX-7150W 569*291*94(mm) |
180W BKK IX-7180W 569*291*94(mm) |
200W BKK IX-7200W 680*307*94(mm) |
240W BKK IX-7240W 680*307*94(mm) |
|
300W BKK IX-7300W 842* 307*94(mm) |
360W BKK IX-7360W 842* 307*94(mm) |
|
|
|

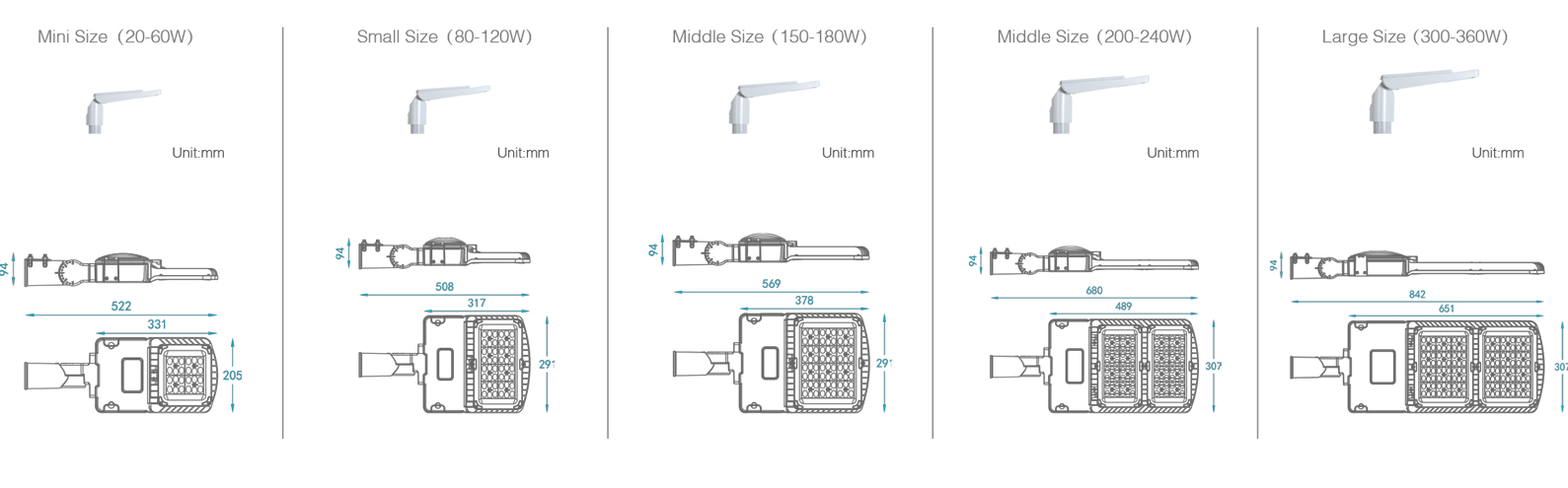

Product Size

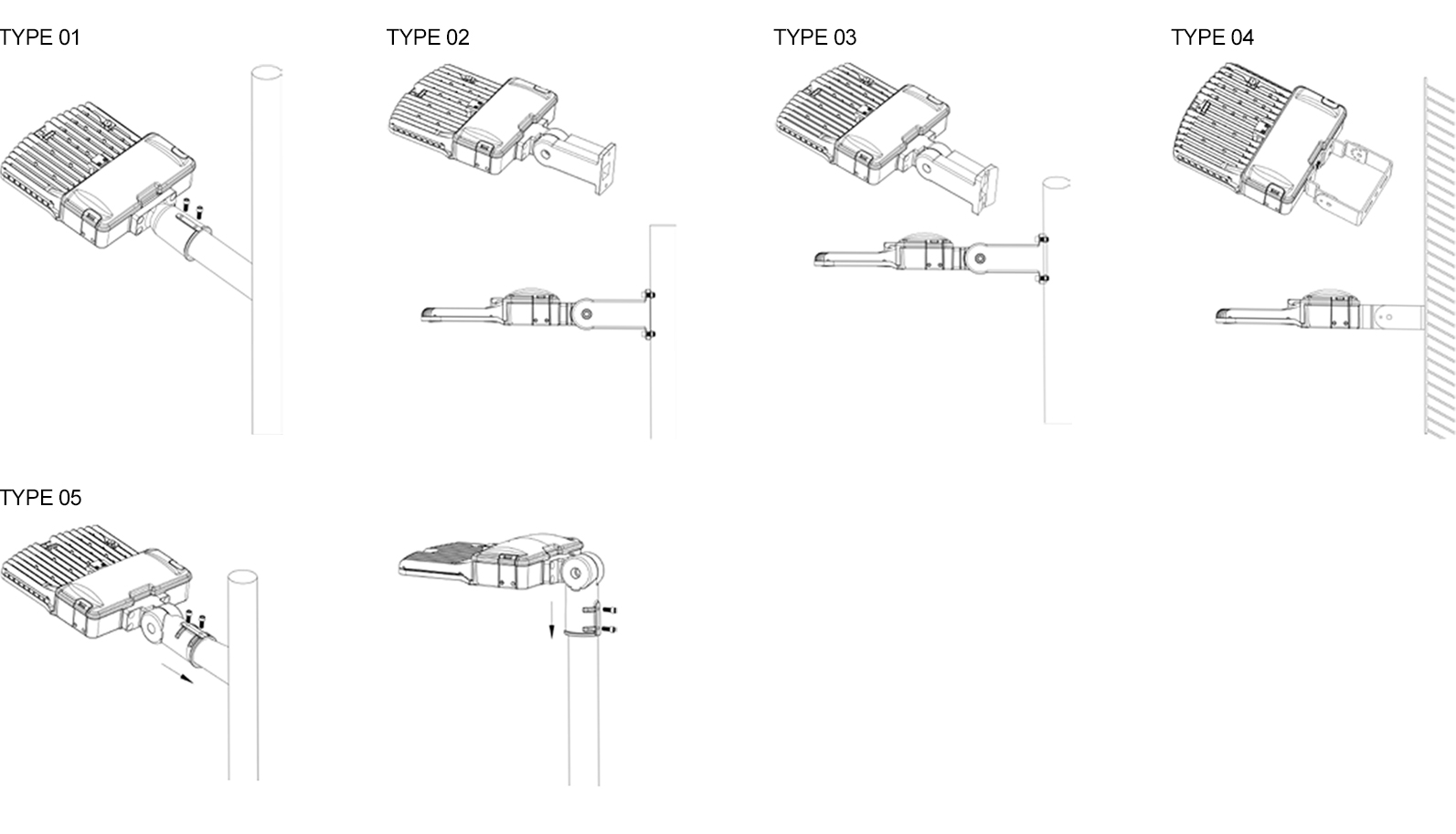

Installation
