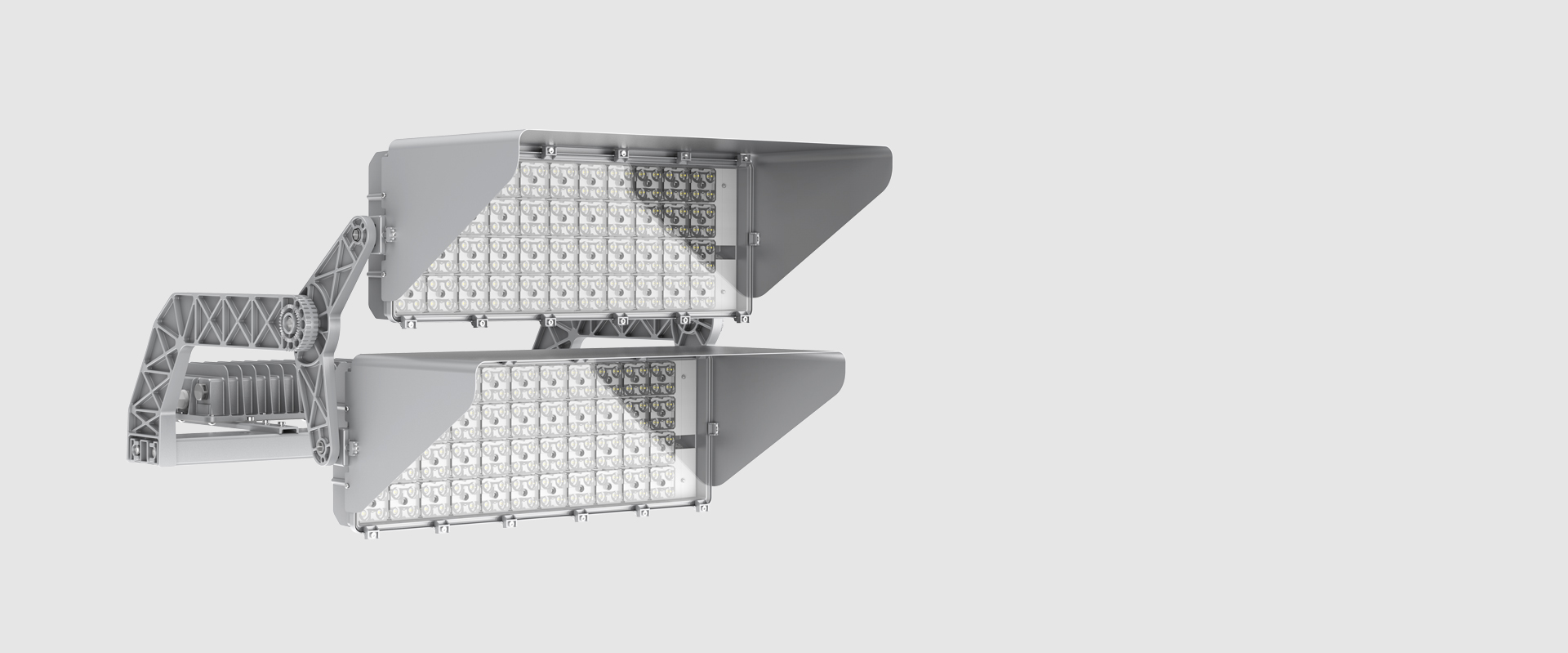

Lamp cap

Reduce light waste

Professional optical PC lens


Various beam angles to mette the
requirements of diffferent courts

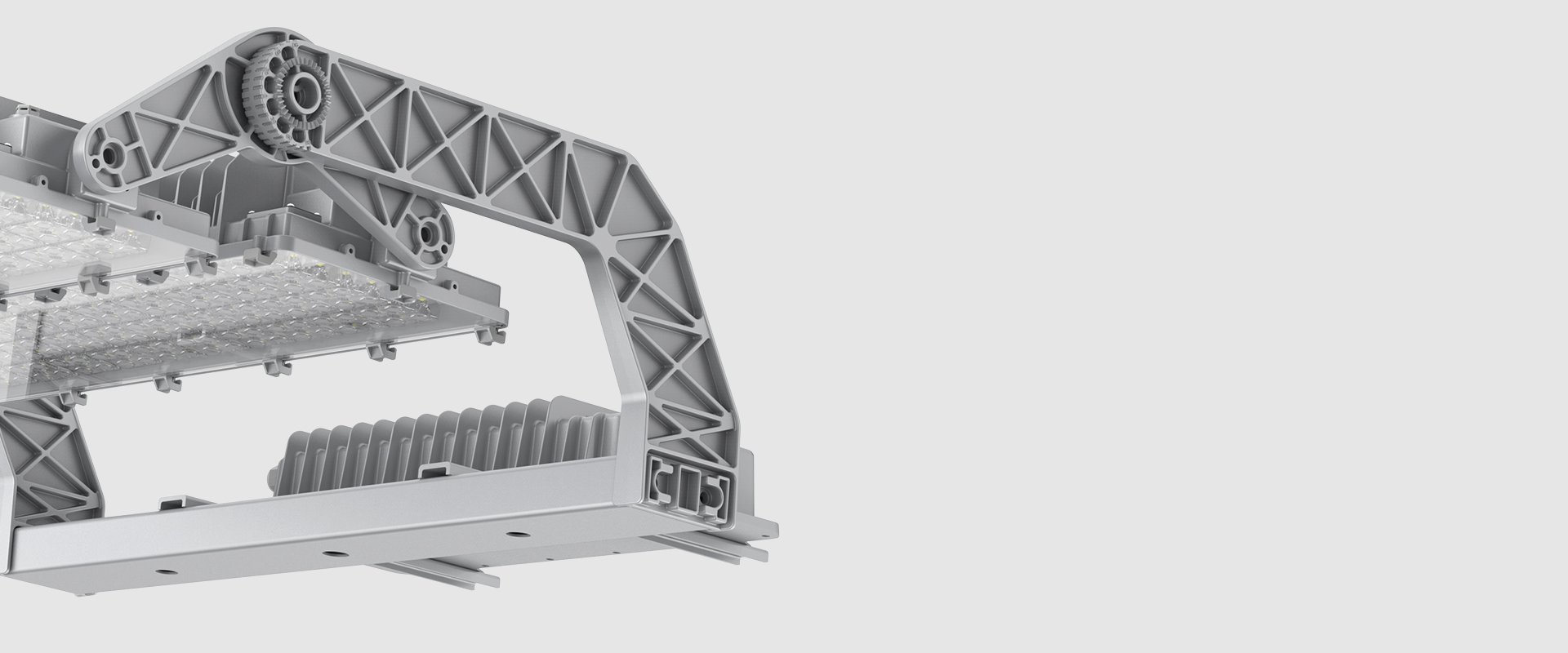

ADC12 strong aluminum bracket

 with a thickness of 4mm

Opto-electrical Separation

Opto-electrical separation solutions are
advantageous to the flexible installation
of the power supply

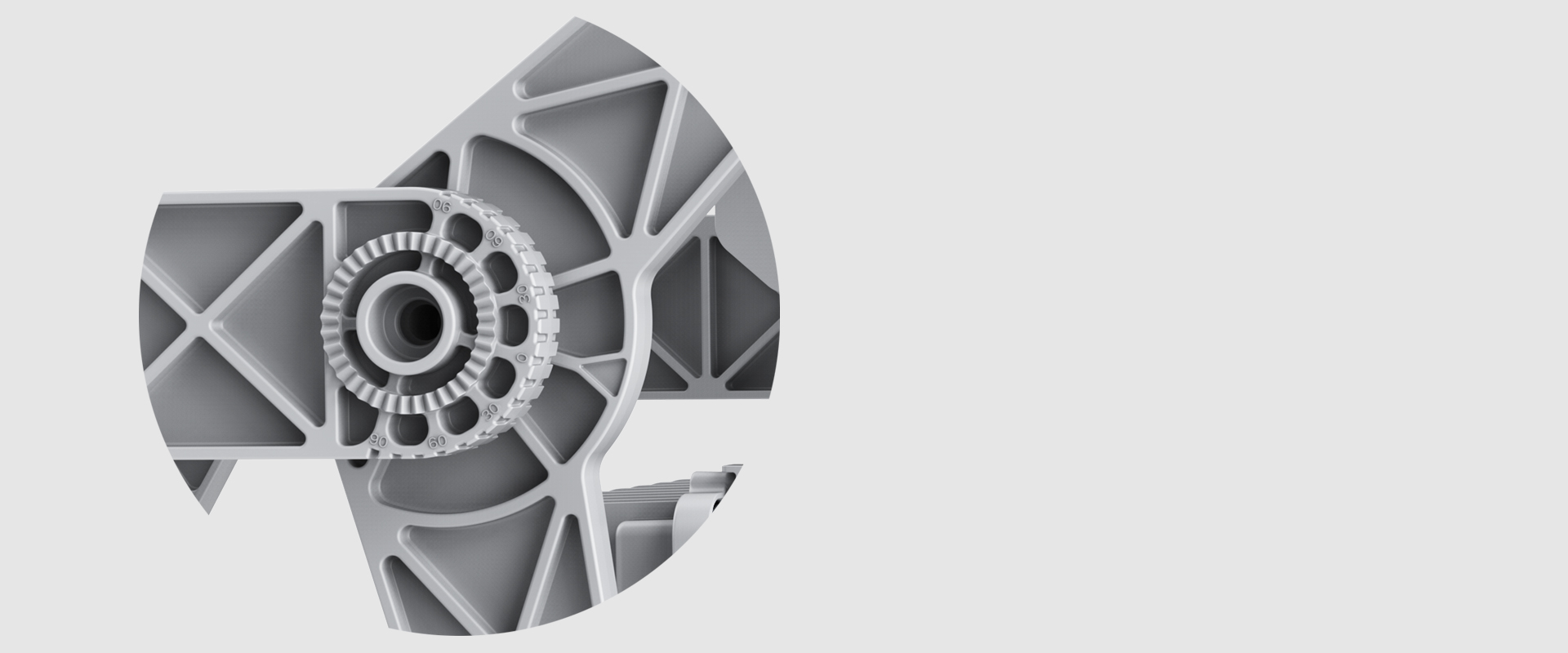

Adjustable bracket


A laser with 10° per steps, better
for pointing accurately on the court


Technical Parameter

System Efficiency165LM/W

Beam Angle15°, 30°, 60° 90°, P60

CCT2700-6500K

CRI>70

Voltage InputAC200~528V

500W
600W
800W
1000W
1200W
BA5-500W
BA5-600W
BA5-800W
BA5-1000W
BA5-1200W
746*504*415 (mm)
746*504*415 (mm)
746*614*517 (mm)
746*614*517 (mm)
746*614*517 (mm)

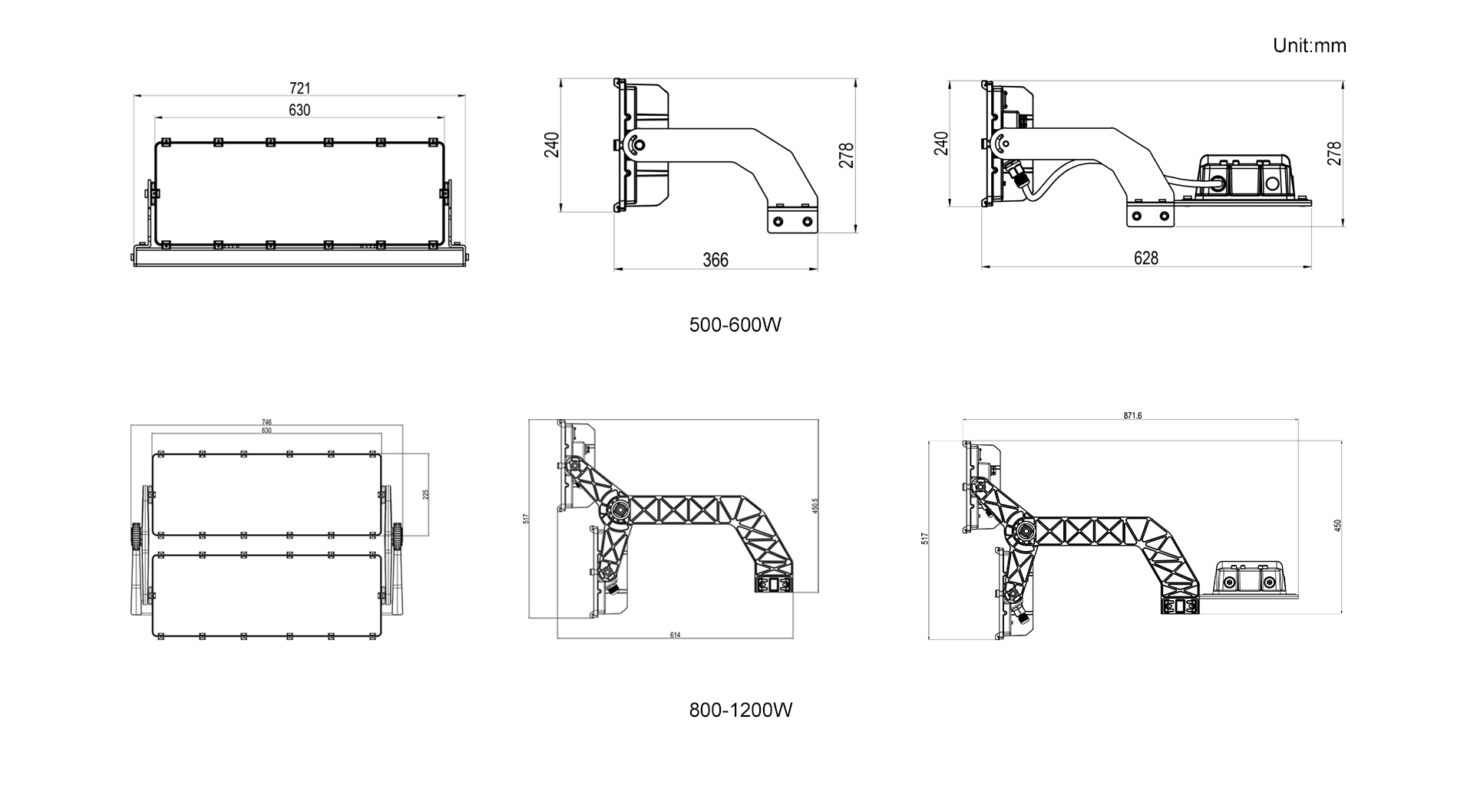

Product Size

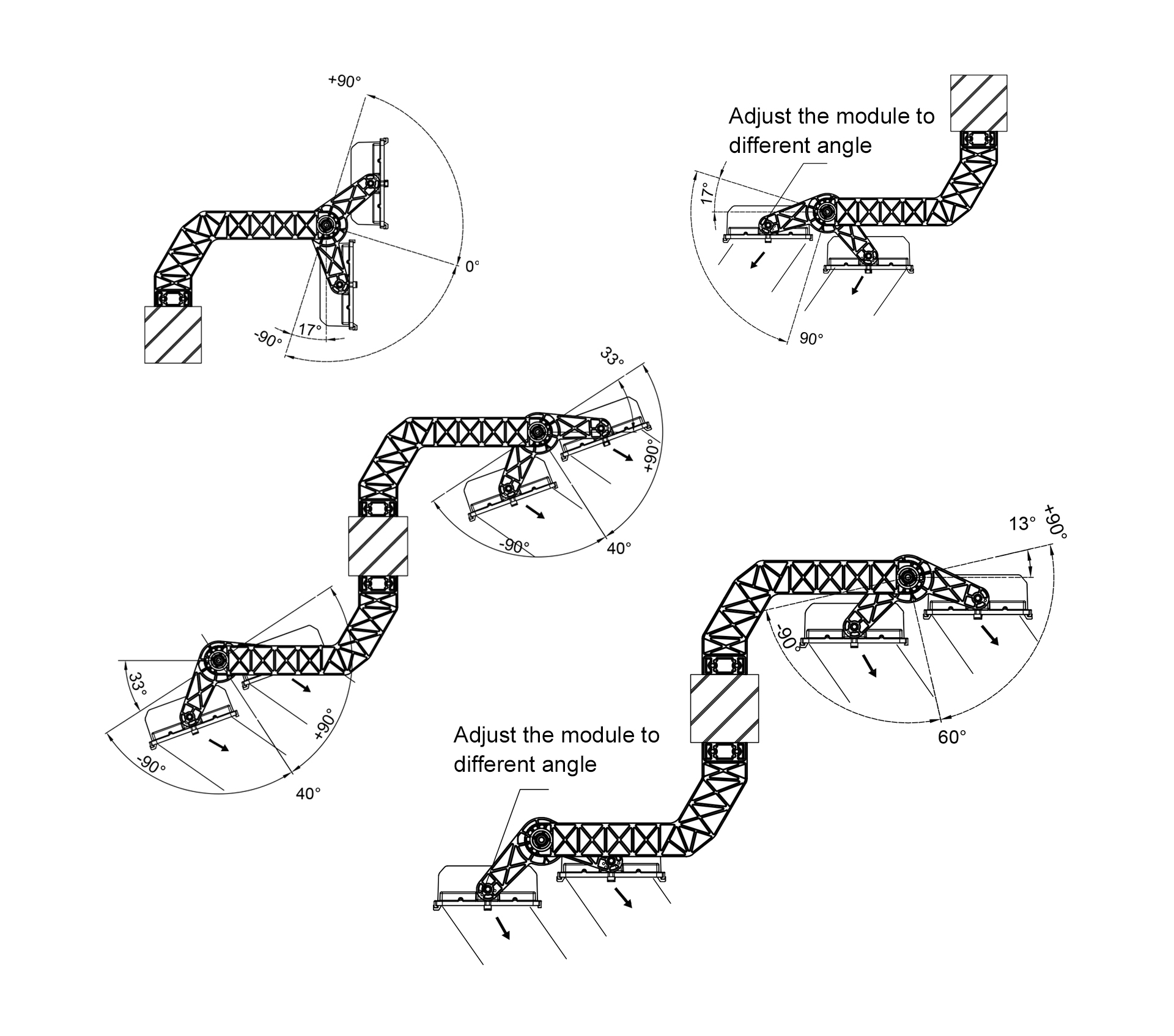

Installation
